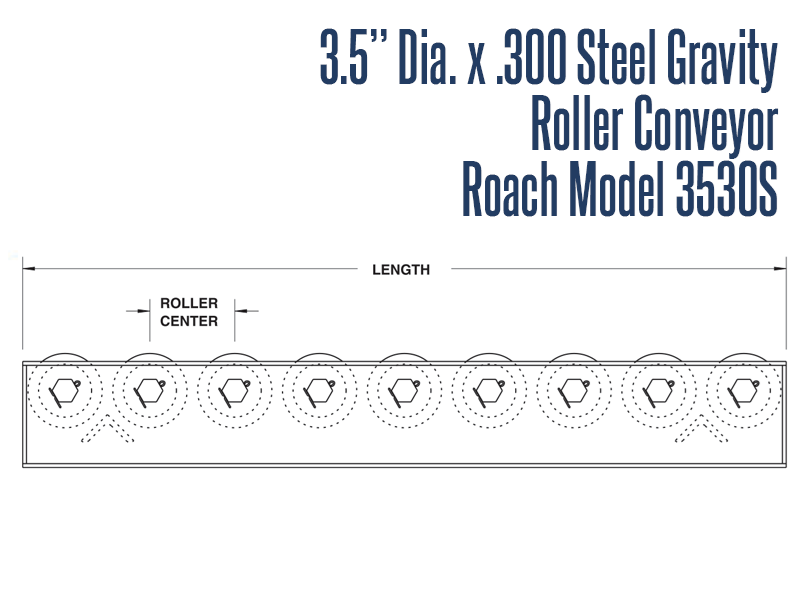

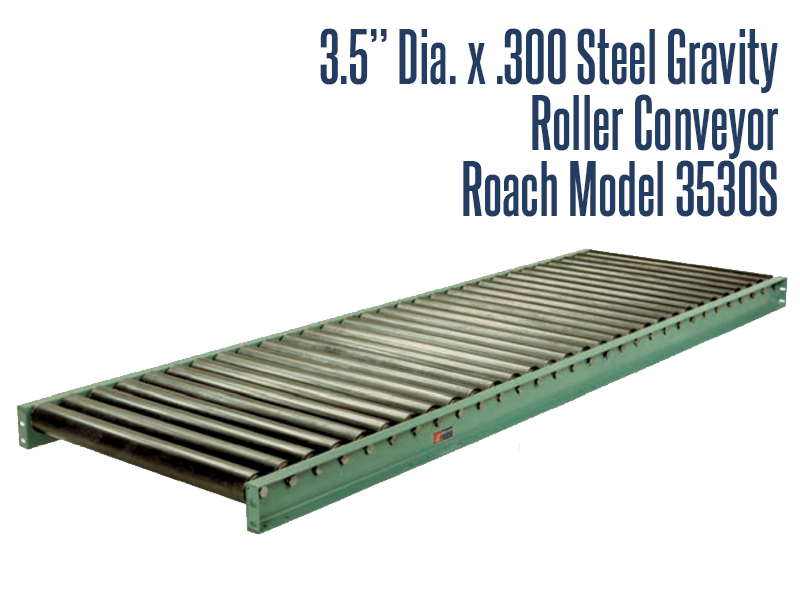

3-1/2” Dia. X .300 Steel Gravity Roller Conveyor, Roach Model 3530S

Roach Model 3530S is a structural steel conveyor built to handle heavy duty pallets, drums, barrels, large coils of sheet metal and large castings
PDF CATALOG

TYPE: Gravity Roller Conveyors - 24 Hour Ship

MODEL: ROACH MODEL 3530S

Structural Steel gravity roller conveyor for heavy duty product movement

Features

  • Non-powered roller conveyors or gravity conveyors are the most economical and common method of conveying unit loads
  • Typically mounted on a slight decline angle, therefore using gravity to assist product movement, especially for long distances or can be moved by a person pushing the load along the conveyor rollers



24 Hour Shipping Available

  • Can provide no-contact accumulation of product
  • Cost effective
  • 3750 lbs. maximum distributed live load per 10’ section with supports at 10’ ctrs; 8000 lbs. at 5’ ctrs.
  • Roller Capacity: 540 lbs per roller

Applications

  • Built to handle heavy duty pallets, drums, barrels, large coils of sheet metal and large castings
  • Can convey loads of wire bins, canisters, barrels, wooden boxes, drums, lumber, cartons, totes, & strapped items
  • Essential for packaging facilities, manufacturing plants, and distribution facilities, gravity roller conveyors allow quick transportation of bulk materials
  • Use in applications where the conveyor is level and operators can push the product along to its final destination, allowing for multiple workstations, as necessary
  • Used on conveyor lines in warehouses, shipping areas, assembly areas, order fulfillment, automotive, food and beverage industries and more

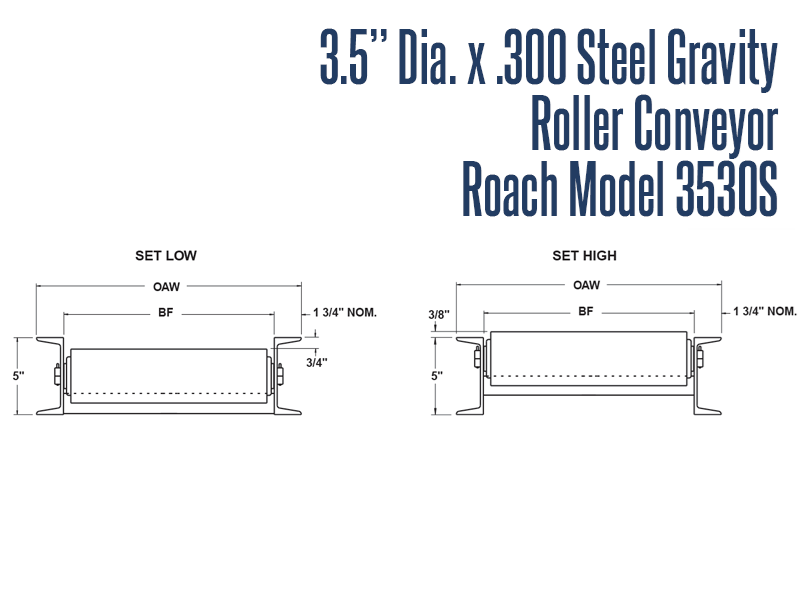

Specifications:

  • Rollers: 3-1/2” X .300 steel tubing with straight ends, reamed to provide smooth bearing seats
  • Frames: 5” at 6.7 lbs structural steel painted channel
  • Roller capacity: 2500 lbs per roller
  • Bearings: Precision ABEC bearings
  • Frame Capacity: 6600 lbs maximum distributed live load per 10’ section with supports at 10’ centers and 16,000 lbs at 5' centers
  • Couplings: Butt type
  • Axles: 1-1/16” hex with pinned shafts

For more information on the Model 3530S please contact a Thomas Conveyor & Equipment Automation Engineer at 844 220 0086 or click on the Contact Us button above.
