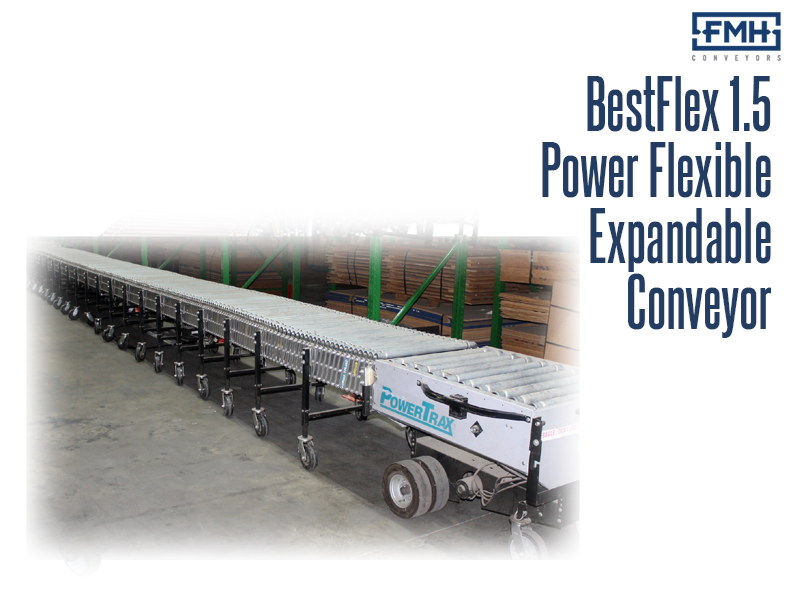

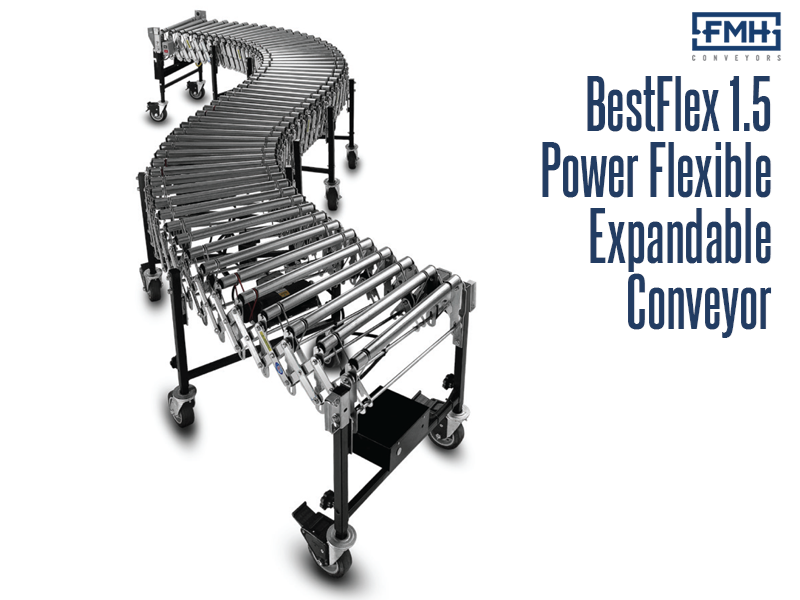

BestFlex 1.5 Power Flexible Roller Conveyor

BestFlex 1.5 Powered Roller Conveyor is a flexible, portable, expandable conveyor used in shipping and receiving areas.
PDF CATALOG

TYPE: Expandable / Accordion Conveyors

MODEL: BestFlex 1.5

The BestFlex 1.5 is a powered, expandable roller conveyor that is portable and flexible.  This powered expandable conveyor can instantly set up a conveyor line anywhere in your facility.

Features

  • The BestFlex 1.5 Power Flexible Roller Conveyor has a capacity of 100 pounds per lineal foot, level surface
  • It can bend or flex to configure to docks, storage rooms, and other applications where a straight conveyor is unsuitable
  • Requires less storage space when fully retracted
  • With its all-bolted construction and durable design, it is the smart solution for distribution centers, warehouses, order fulfillment centers and retail stores where there is high volume cross docking, loading and unloading applications.
  • Built-in impact conveyor
  • Electronic indexing
  • Zero pressure accumulation
  • Power assist
  • Portable and Expandable
  • If powered, any package size can be moved any distance at variable speeds
  • Heavy duty 16 gauge precision bearing
  • 1.5” Ø steel rollers
  • 5” axle centers
  • 31.5” – 41.5” adjustable conveyor heights
  • Heavy duty steel square tubing powder coated black legs
  • 6” x 2” heavy duty casters with brakes
  • 1.59” aluminum extruded side plates with bolted construction
  • Self-tracking design
  • Durable DC drive motors with 120V A/C
  • On/Off switches on both ends of conveyor
  • Handles on each end of the unit

Applications

  • Smart solution in packaging and manufacturing applications since it allows greater product control and worker efficiency

Options

  • 4” and 3” axle centers
  • Electronic photo eye package stop
  • Zero pressure accumulation
  • Indexing
  • Leg connect brackets
  • Electrical interface kit (allows multiple sections to operate together)

Accessories

  • Herringbone transition
  • Guide Track
  • PowerTrax

For more information on the Bestflex 1.5 Power Flexible Roller Conveyor please contact a Thomas Conveyor & Equipment automation engineer at 844 220 0086 or click on the Contact Us button above

QUESTIONS? CALL 844-220-0086
