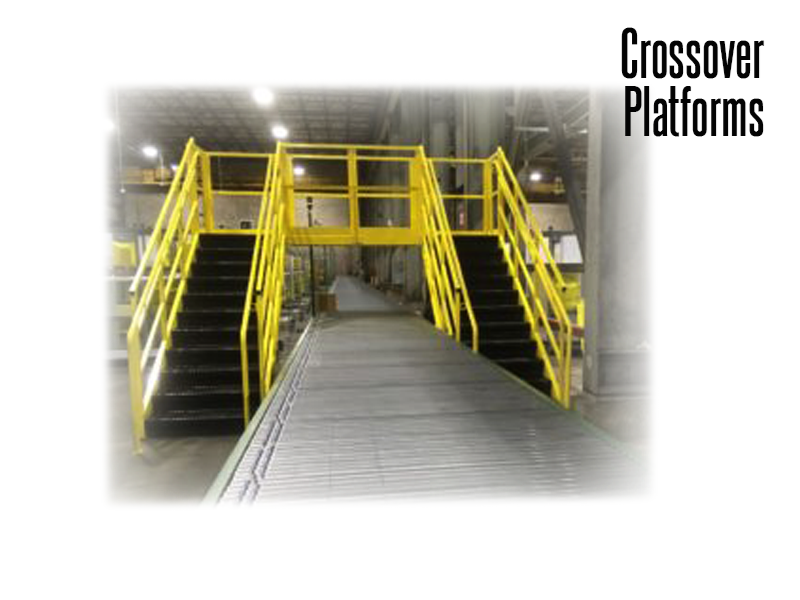

Conveyor Crossovers and Access Platforms

Conveyor crossovers and access platforms allow workers to walk over obstructions safely.

TYPE: Mezzanine Stairs, Ladders, Landings and Ramps

MODEL: Conveyor Crossovers and Access Platforms

Industrial conveyor crossovers (i.e, crossover ladders, crossover stairs, access platforms) provide a segway to safety move staff up and over machinery, equipment, conveyors, high traffic areas, work zones and other obstacles and hazards in a work area.

Conveyor crossovers provide a designated passageway over workplace impediments and hazards and allow personnel to efficiently travel and navigate factory tasks without difficulty.

There is a wide variety of standard crossovers in a wide range of dimensions and configurations.  Custom crossovers with horizontal and vertical clear dimensions are also available.


Standard Conveyor Crossover

Standard Conveyor Crossovers

Standard crossovers are an economical way to provide staff with safe egress over interior and exterior obstacles.

Specifications:

  • OSHA and Cal-OSHA Compliant
  • Two piece construction for easy installation
  • 1.5" Diameter tubular steel frame
  • 24" Wide Deck and Treads
  • 4" Toe Board on Decks
  • 28" Overall Width
  • 9/16" Hole Anchoring
  • Diamond Plate or Safety Grating for Slip Resistance
  • Handrail Included
  • Yellow Enamel Finish

Options:

  • Bridge inserts for additional horizontal clearance
  • Custom horizontal and vertical clear dimensions available
  • Safety Grating and Steps
  • Closed Risers
  • Additional Paint Colors Available
  • Hot dip galvanized finish

Custom Conveyor Crossover

Custom Conveyor Crossovers

We have solutions to custom applications, such as a U, Z or reverse Z conveyor crossover configuration.  Custom crossovers create safe and helpful work environments for your employees.

Custom conveyor crossover specifications:

  • Available in U, Z or Reverse Z Configurations
  • OSHA and Cal-OSHA Compliant
  • 45° Angle of Climb with 9" Rise, 9" Run for easy passage
  • Four piece construction for easy installation
  • 1.5" Diameter tubular steel frame
  • 24" Wide Deck and Treads
  • 4" Toe Board on Decks
  • 28" Overall Width
  • 9/16" Hole Anchoring
  • Diamond Plate or Safety Grating for Slip Resistance
  • Handrail Included
  • Yellow Enamel Finish

Custom Options:

  • Bridge inserts for additional horizontal clearance
  • Custom widths and vertical clearances
  • Safety Grating and Steps
  • Closed Risers
  • Center towers for multiple spans
  • Custom entry and exit configurations
  • Can be customized to meet vertical and horizontal specifications
  • Additional Paint Colors Available
  • Hot dip galvanized finish


Vertical Climb Conveyor Crossover

Vertical Climb Conveyor Crossovers

When space or area is limited, a vertical climb conveyor crossover will allow personnel to safely pass over ground level hazards or obstructions.  Designed to minimize square footage, they are sturdy and durable.  They can also be customized to accommodate vertical clearance requirements.

Specifications:

  • Two piece construction for easy installation
  • 2.5" x 2.5" x 3/16" Steel Angle Frame
  • 1.5" dia. Tubular Steel Guard Rails
  • Rungs on 12" Centers with Dock Tread Steps
  • 4" Toe Board on Decks
  • 30" Overall Width
  • 9/16" Hole Anchoring
  • Diamond Plate or Safety Grating for Slip Resistance
  • Yellow Enamel Finish

Custom Options:

  • Bridge inserts for additional horizontal clearance
  • Custom widths and vertical clearances
  • Safety Grate Decks and Traction Tread Rung Caps
  • Center towers for multiple spans
  • Customizable to meet vertical and horizontal specifications
  • Additional Paint Colors Available
  • Hot dip galvanized finish


Vertical Climb Step Over Conveyor Crossover

Step Over Conveyor Crossovers

Step over conveyor crossovers allow personnel a way to safely step over single or double conveyor configurations.  Vertical Climb Step Overs are best used when space is at a premium, while Stair Style Step Overs provide a designated area to easily traverse over a facility's conveyor system.

Specifications:

  • Frame: 1.5" Diameter Steel Tube
  • Steps: 2.5" x 24" 14 gua. Diamond Plate
  • Top Step: 6" x 24" 14 gua. Diamond Plate
  • Mounting: 2" x 13" Foot Pads with 7/16" Diameter Holes
  • Tread Plates: 14 gua. Diameter Plate 1 1/4" x 3 1/2"
  • Hole Anchoring: 9/16"
  • Single Conveyor Model: 36" Long Grab Bars
  • Double Conveyor Model: 57" Long Grab Bars
  • Trim in field to required length

Single Conveyor:

Max Stop Step Heights: 24" - 60"
Max Horizontal Clearance: 48"
Weight (24" Wide Treads): 105 lbs - 111 lbs.

Double Conveyor:

Max Stop Step Heights: 24" - 60"
Max Horizontal Clearance: 72"
Weight (24" Wide Treads): 110 lbs - 116 lbs.


LadderLink™ Modular Conveyor Crossover

Modular Conveyor Crossovers

Thomas Conveyor has partnered with Wildeck to provide the Ladderlink™ modular access system.   The Ladderlink™ has five steel components to choose from and allows for an endless combination of work platforms, crossovers and stair configurations to be assembled to provide unequaled ingress.

Benefits:

  • Endless configurations
  • Cost Effective Steel Fabrication
  • Condensed Packaging/Shipping
  • Made in the USA of Strong, Quality Steel
  • Easily Reconfigured

LadderLink™ Components:

LadderLink Components


Custom U Shaped Crossover Platform

Custom Platform Design and Fabrication

Certain industries require a custom fit for their applications. Our Automation Engineers have the experience to custom configure access platforms to help provide you with safe access.

Some custom fabrications include, but are not limited to:

  • Custom Ladder Stands
  • Custom Ladder Stairs
  • Custom Access Ladders
  • Custom Marine Ladders
  • Custom Ships Ladders
  • Custom Rolling Ladders

For more information on industrial conveyor crossovers or access platforms, please contact a Thomas Conveyor & Equipment automation engineer at 844 220 0086 or click on the Contact Us button above.
