Conveyor Guard™ Conveyor Guarding

Half Round Conveyor Guards are designed for safety at the side rail of those critical areas on the conveyor line.

TYPE: Conveyor Guarding

MODEL: Conveyor Guarding

Conveyor Side Rail Guards, End Cap Product Stops, Corner Guards and Leg Guards ensure full protection for personnel working near conveyor lines.

Conveyor guards are designed to protect employees from potential hazards of sharp metal edges on conveyor systems in addition to improving the aesthetics and providing an additional level of protection on the conveyor system.


Half Round Conveyor Guards

Half Round Conveyor Guards

Conveyor half round side rail is an extrusion mold ABS plastic guard.  The patented guard protects employees and provides a finished look to any conveyor system.

Sizes: 2.5", 3.5", 4.5" 6.5"
Standard Color: Gray or Yellow
Shipped in 10' lengths (Cut to length with custom order)
Custom orders are available.
Installation: the guard snaps onto the steel side frame.

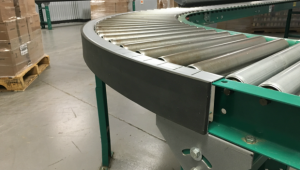

Conveyor Corner Guards

Corner Conveyor Guards

Conveyor corner side rail guards are a patented, padded rectangular guard, slotted to permit extension around the curved inside/outside corners composed of extruded molded plastic guards.

Sizes: 1" x 2.5", 1.5" x 3.5", 1.5" x 6.5"
Standard Color: Gray
Shipped in 10' lengths (Cut to length with custom order)
Custom colors are available.
Installation: Guards snap onto the steel side frame.


Rectangular Corner Guards

Rectangular Conveyor Guards

Rectangular conveyor guards are a patented, padded rectangular guard,  composed of extruded molded plastic.

Sizes: 1" x 2.5", 1.5" x 3.5", 1.5" x 6.5"
Standard Color: Gray
Shipped in 10' lengths (Cut to length with custom order)
Custom colors are available.
Installation: Guards snap onto the steel side frame.


Conveyor Guard End Cap / Product Stop

Conveyor Guard End Cap/Product Stop

The conveyor guard end cap/product stop is a two in one product for the end of a conveyor line.  If mounted from the top of a conveyor, it serves as a product stop; it can also be reversed and mounted from the bottom to be used as an end cap for the conveyor line.


Corner Guard Padding

Conveyor Guard Padding

Conveyor guard padding is applied to the outside of any conveyor guard rail and/or the end cap/product stop product.  It provides an additional level of padding/protection to the conveyor line exterior.  Conveyor padding and EPDM is sold in rolls.

EPDM Cover
EPDM is a rubber membrane with a self-adhesive sealant used to cover the conveyor guard padding.  It offers long term heat and chemical resistance, and remains flexible in harsh conditions.

Conveyor Guard End Cap with EPDM Application


Conveyor Guard End Caps

Conveyor Guard End Caps

Conveyor guard end caps are a flexible rectangular cap that are used to protect employees from the sharp edges at the end of a rail on a conveyor line.

Sizes: 2.5" x 1.063" x 1.0 "
           3.5" x 1.5" x 1.0"
           4.0" x 1.5" x 1.0"
Standard Color:  Gray
Composed of flexible PVC, the caps are easily fitted around irregular rectangular ends.
Conveyor end caps


Conveyor Leg Guards

Conveyor Leg Guards

Conveyor leg guard is a heavy duty foam product that can be attached to conveyor legs on a conveyor line.  They product an additional level of protection again the sharp edges of the conveyor legs.
These guards can also be used on the horizontal edges of racking units providing a level of head protection against injuries related to steel racking beams.

Sizes:  Up to 30" long x 13/4" x 13/4" x 5/8" Foam
Color: Safety Yellow/Black

For more information on Conveyor Guard™ conveyor guarding products, please contact a Thomas Conveyor & Equipment Automation Engineer at 800 220 0086 or click on the Contact Us button above.
