Gorbel Cleveland Tramrail Overhead Cranes

Cleveland Tramrails' patented underhung crane systems provide reliable, long-lasting service in high-duty-cycle applications such as loading docks, parts assembly, equipment maintenance and truck service centers.
INSTALLATION & MAINTENANCE

TYPE: Gorbel Cranes and Monorails

MODEL: Cleveland Tramrail Cranes

Cleveland Tramrail's unique Tarca Track™, with its special raised tread and high carbon track, is superior to I-Beams in strength, durability, and consistency.

Cleveland Tramrail's unique Tarca® Track, with its special raised tread and high carbon track, is superior to I-Beams in strength, durability, and consistency. The Tarca™ rails permit the use of underhung carriers to operate on a single straight, curved, or inclined track or operate on two or more straight runway tracks.

Tarca Tramrail, Example of PeeningA common source of track wear is a process known as peening. Peening is the gradual movement of metal over time, caused by the rolling action of wheels. Because of an I-beam’s construction, peening tends to occur unevenly, weakening the beam flange and restricting smooth travel. Tarca® Track’s raised tread design and extra hard alloy steel construction slows down the peening process. The full width of the raised tread wears evenly, extending track life well beyond that of I-beams.


Gorbel Free Standing Bridge Crane

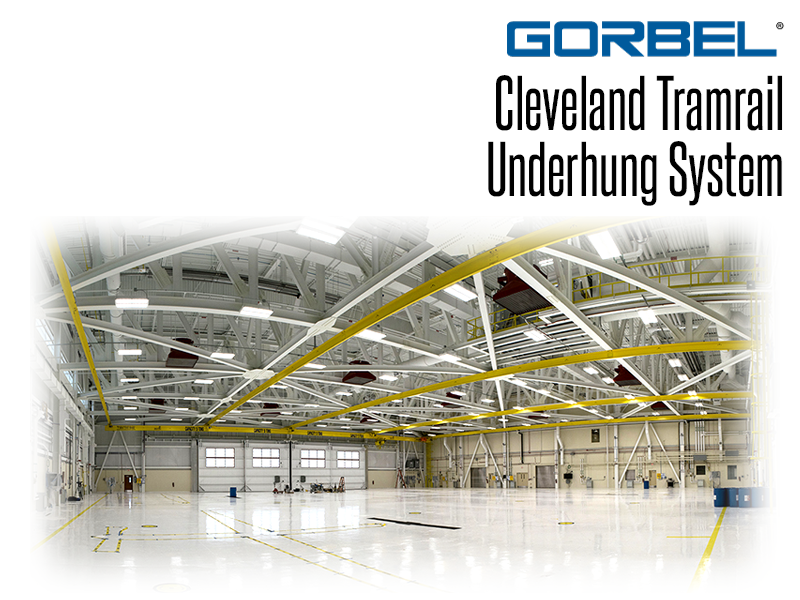

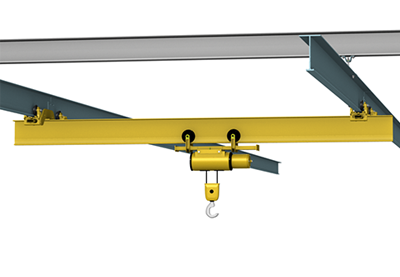

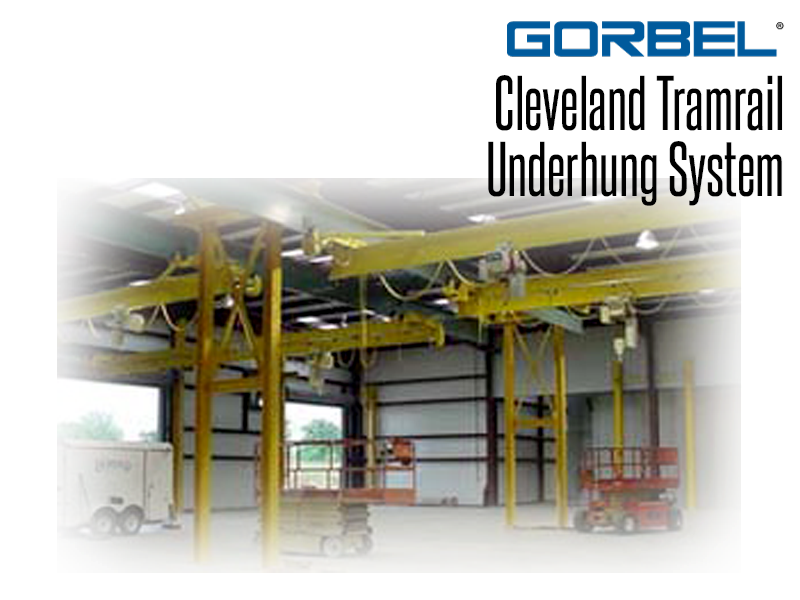

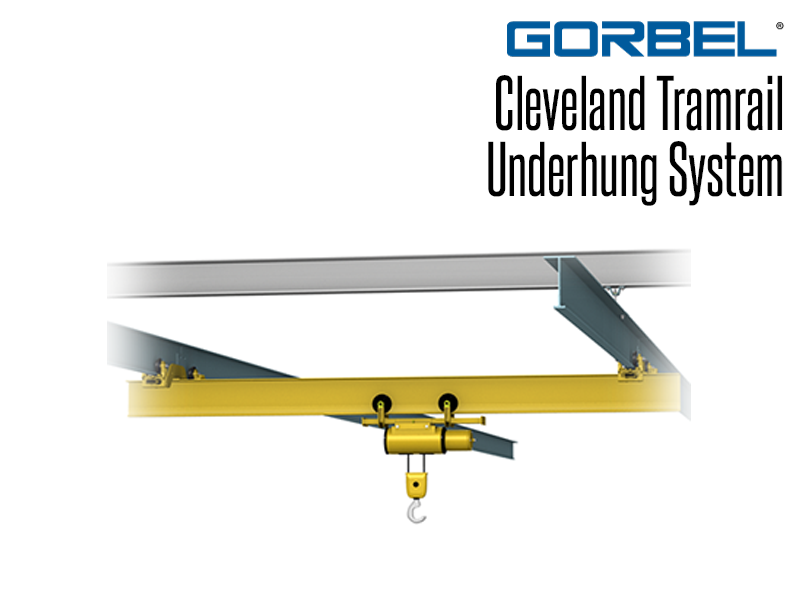

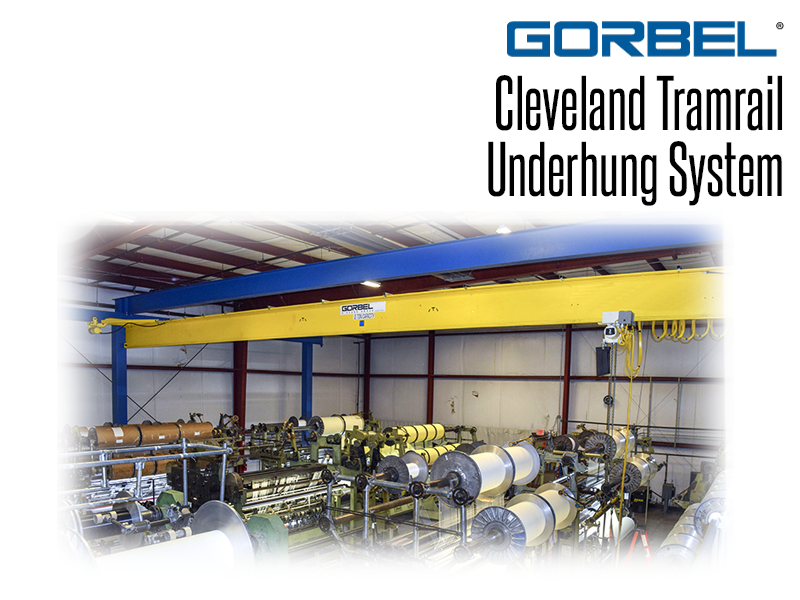

Cleveland Tramrail Underhung System

Cleveland Tramrails' patented underhung crane systems provide reliable, long-lasting service in high-duty-cycle applications such as loading docks, parts assembly, equipment maintenance and truck service centers.

  • Capacities up from 5 to 40 Tons
  • Rectangular coverage with spans to 38'
  • Support centers up to 50'
  • Easily changeable & expandable

Features

  • Superior to I-Beams in strength, durability, and consistency
  • Extended track life compared to I-Beam Systems
  • System expansions are easy and cost effective
  • Straight rails result in easy, predictable, cost effective installations
  • Efficient spanning capabilities eliminates costly additional supporting structures
  • Raised tread Tarca™ track provides durabillity and superior safety
  • Flexible suspensions provide for longer life and less maintenance

Gorbel Cleveland Tramrail Monorail

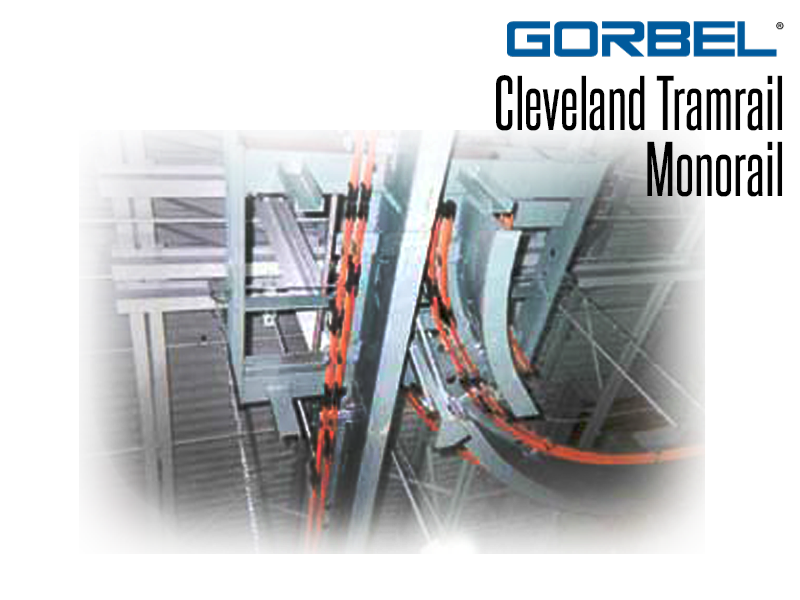

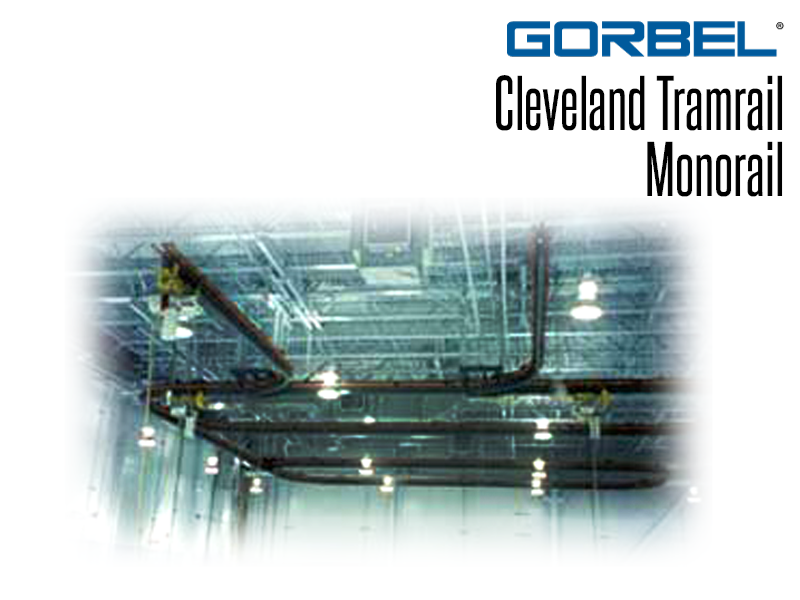

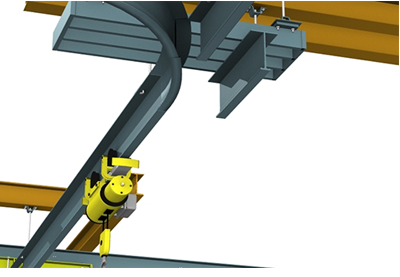

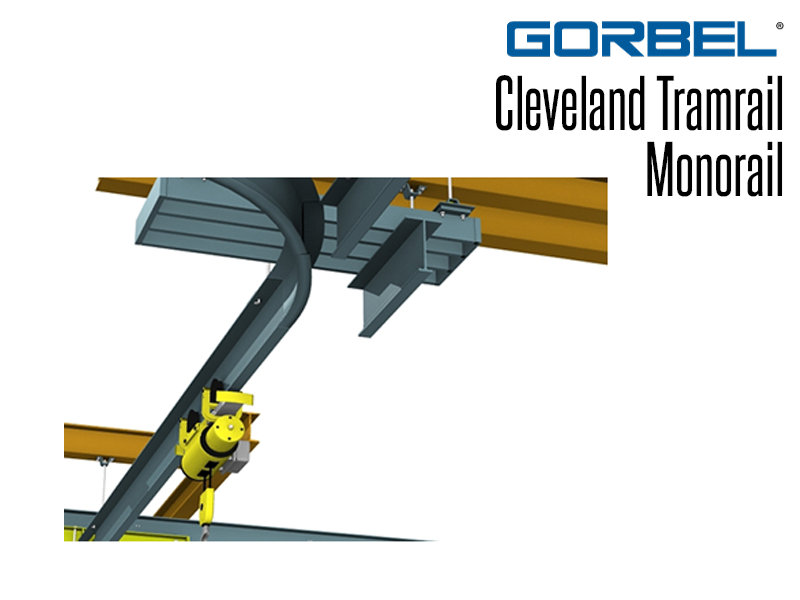

Cleveland Tramrail Monorails

Monorails are ideal for applications that require the movement of materials throughout an entire production area.

  • Capacities from 5 to 40 tons
  • Straight and/or curved path routes
  • Can move materials through entire
    production area
  • Easily changeable and expandable

Features

  • Superior to I-Beams in strength, durability, and consistency
  • Extended track life compared to I-Beam Systems
  • Raised tread Tarca® Track provides durability and superior safety
  • Straight rails result in easy, predictable, cost effective installations
  • Flexible suspension provides for longer life and less maintenance


Gorbel Free Standing Tarca System

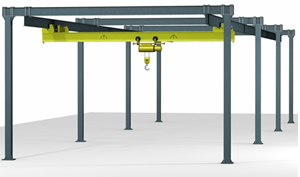

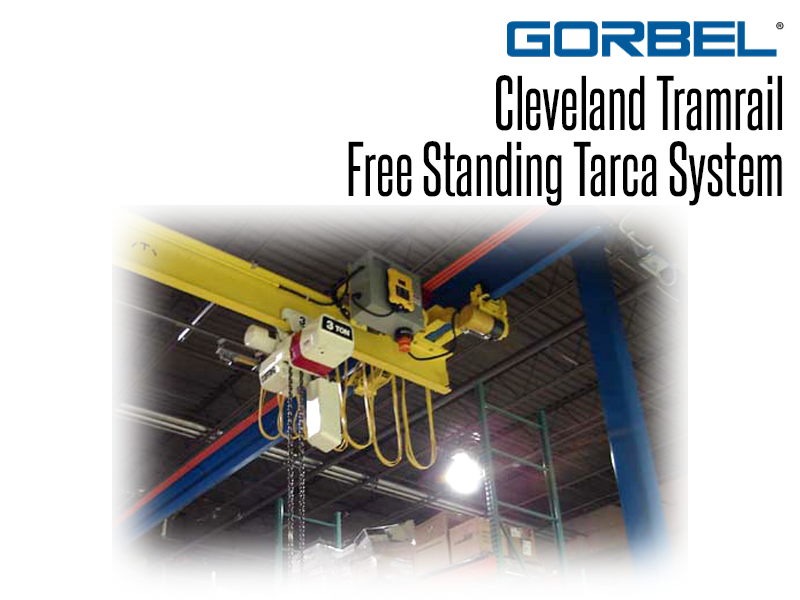

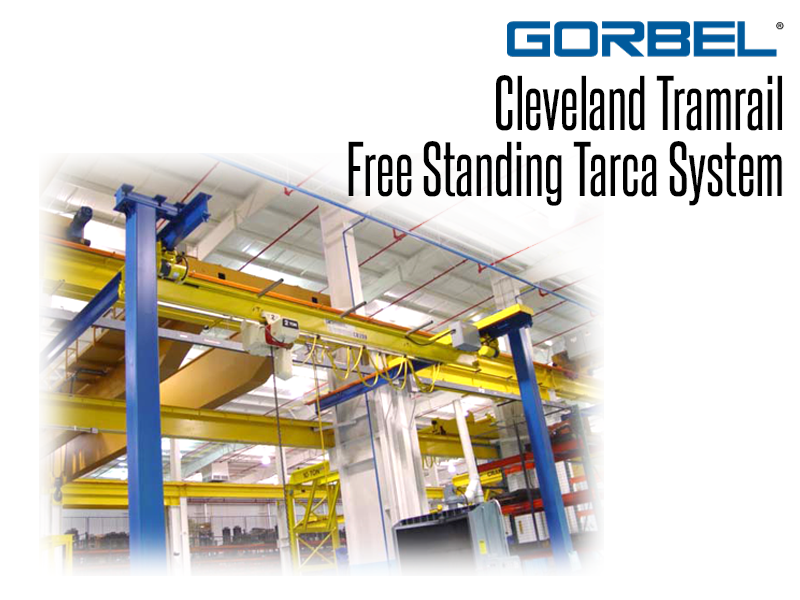

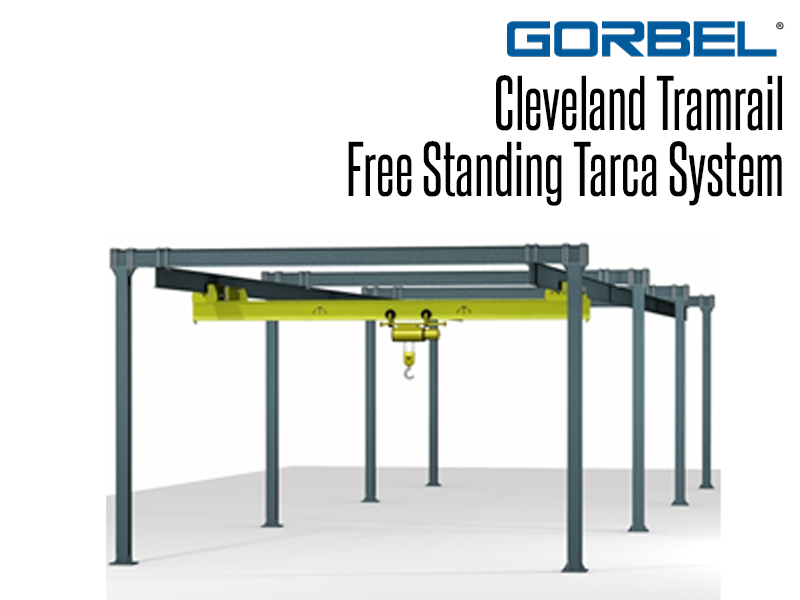

Free Standing Tarca System

The Free Standing Tarca™ system provides consistently straight rail sections and
durable components that ensure long, productive service life.

  • Capacities up to 5 tons
  • Completely free standing or braced systems
  • Rectangular coverage with spans to 60'
  • Runway supports centers available in 20' to 40'
    increments

Features

  •  Superior to I-Beams in strength, durability, and consistency
  • Straight rails result in easy, predictable, cost effective installations
  • System expansions are easy and cost effective
  • Raised tread track provides durability and superior safety
  • Flexible suspensions mean greater system performance and lower maintenance costs
  • Easily undercut to increase headroom


Gorbel Ceiling Mounted Tarca System

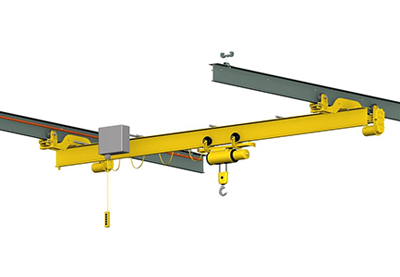

Ceiling Mounted Tarca System

Our Ceiling Mounted system is ideal for applications where maximum headroom is required.

    • Capacities up to 5 Ton
  • Rectangular Coverage with spans to 58'
  • Custom support centers up to 50' on runways

Features

  • Superior to I-Beams in strength, durability, and consistency
  • Straight rails result in easy, predictable, cost effective installations
  • System expansions are easy and cost effective
  • Flexible suspensions mean greater system performance and lower maintenance costs
  • Easily undercut to increase headroom

For more information on Gorbel™ Ceiling Bridge Cranes and Monorails, please contact a Thomas Conveyor & Equipment Ergonomic Automation Engineer at 800 220 0086 or click on the Contact Us button above.
