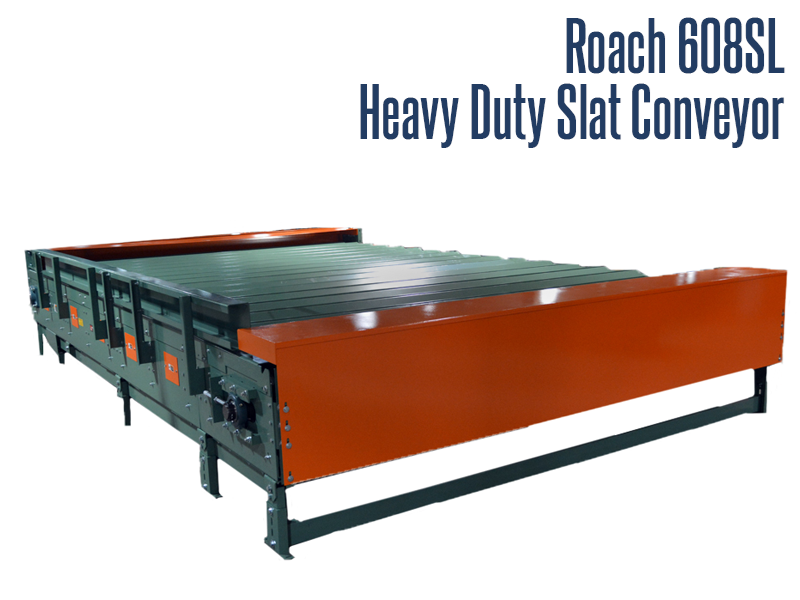

Heavy Duty Slat Conveyor, Roach Model 608SL

Roach Model 608SL Heavy Duty Slat Conveyor conveys unstable, irregular shaped objects and those with problem bottom surfaces. Slat conveyors do not allow products to rest up against each other or accumulate, since the product is typically held in a fixed position relative to the slats
PDF CATALOG
INSTALLATION & MAINTENANCE

TYPE: Slat Conveyors

Contact an Application Engineer
MODEL: ROACH MODEL 608SL

The Roach Model 608SL, Heavy Duty Slat Conveyor conveys unstable, irregularly shaped objects and those products with problem bottom surfaces.

Slat conveyors do not allow product to nest against each other or accumulate, as the product is typically held in a fixed position relative to the slats.  Slat conveyors consist of endless chains, driven by electric motors operating through reduction gears and sprockets with attached spaced slats to carry objects that would damage a belt due to sharp edges or heavy weights.

Features

  • Used in horizontal conditions and operate at relatively slow speeds
  • Generally used to move items that are not typically conveyable on rollers or belts, due to an irregular shape or bottom condition
  • They can also be used in assembly operations by modifying the slats to accommodate assembly fixtures

Applications

  • The 608SL is commonly used in appliances and furniture handling and assembly line operations where product moves at a slow rate of speed through several operator work stations.

Specifications

  • Slat: 5-3/4” wide formed 7 ga. steel channel. Slat chain, 6” pitch @ 2500 lb. pull each
  • Drive: End side mount drive.
  • Speed: 35 FPM, constant (maximum).
  • Take-Up: Screw type.
  • Bed: 19-3/4” deep formed steel channel.
  • Motor Drive: 3/4 HP, 230/460/3, 60 cycle, ODP right angle gear motor.
  • Drive Chain: Sizes will vary with length of conveyor and chain pull required.
  • Electrical Controls: Optional

Options

  • Floor supports: Minimum 17” top of slat with floor mounted drive and 6” tooth sprocket.
  • Conveyor Speed: Other constant or variable speed drives available.
  • Motors: Available through 5 HP in TEFC, explosion proof, dirty duty, 115/230/1, 575/3, etc.
  • Electrical Controls: Manual start/stop push button switch; magnetic starter; photo eye; others available.

For more information on the Roach Model 608SL, Heavy Duty Slat Conveyor, please contact a Thomas Conveyor & Equipment automation engineer at 844 220 0086 or click on the Contact Us button above.
