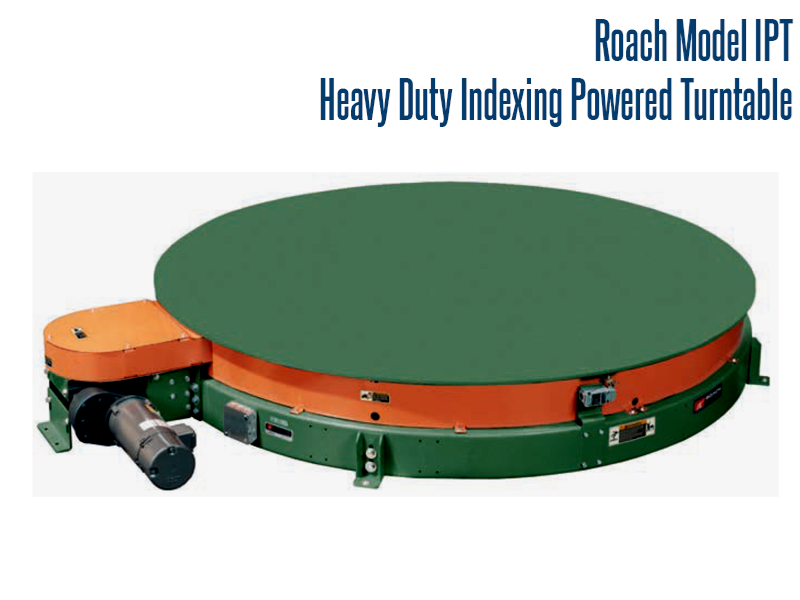

Heavy Duty Indexing Powered Turntable, Roach Model IPT

Features

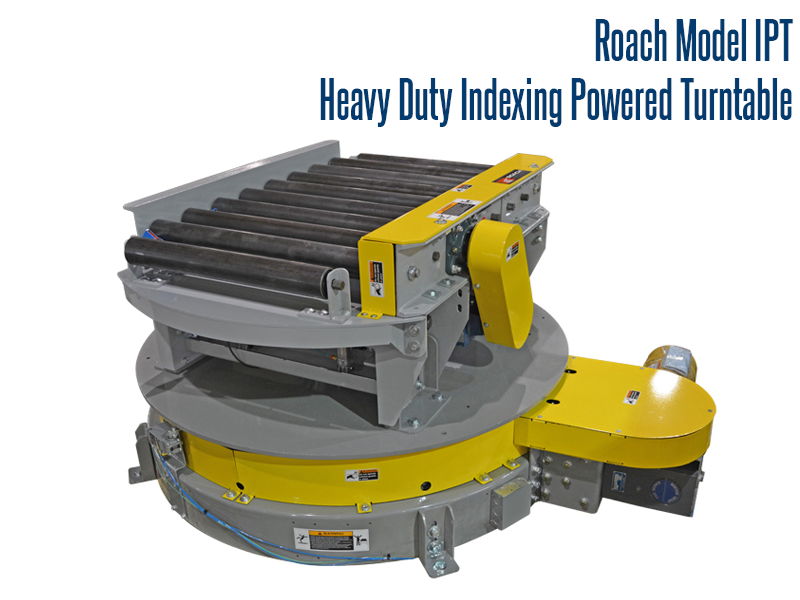

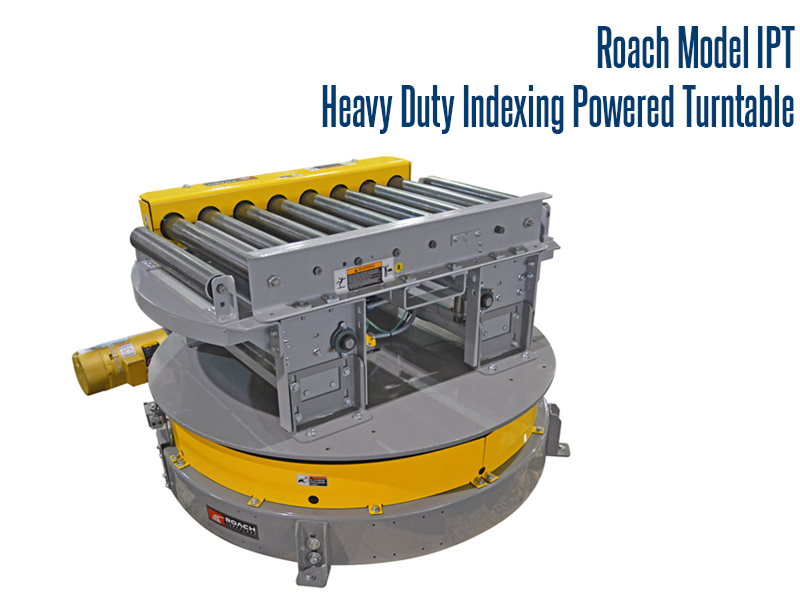

• A heavy duty chain driven live roller may be mounted on the turntable platform and rotated to orient product at specified intervals allowing the operator to perform a variety of tasks, such as blasting, rinsing, cleaning, and blow-off
• Indexing turntable provides precise positioning of the workpiece in front of blasting nozzles for guaranteed repeatability of process requirements
• Units allow for a variety of loading and unloading options, ranging from simple manual operation to more sophisticated robotic operations

Applications

• Manufacturing
• Used for tasks such as blasting, rinsing, cleaning, and blow-off in intervals

Specifications

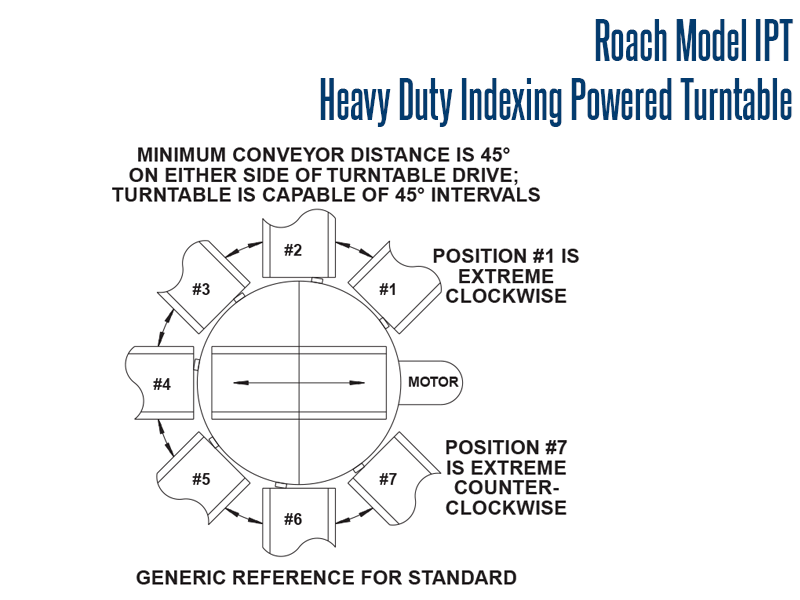

• Rotation: 2 position, 3 position or 4 position
• Speed: 35 FPM at outside diameter
• Chain Drive: No. 80 roller chain
• Chain Guard: The chain drive is completely enclosed.
• Casters: (8) 4” dia. heavy duty rubber-covered casters support rotation of turntable carrier platform.

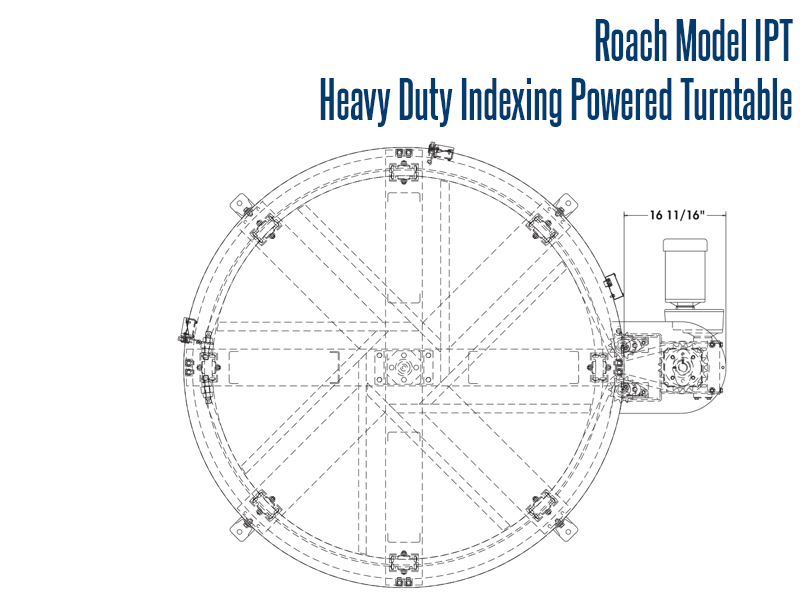

• Diameter: 3’-0”, 3’-6”, 4’-0”, 4’-6”, 5’-0”,5’-6”, 6’-0”, 6’-6”, 7’-0”, 7’-6” and 8’-0” dia.
• Carrier Platform: 3” structural platform with 1/2” thick steel plate supported by heavy duty casters.
• Bearings: Heavy duty ball bearing 4-hole flange
• Capacity: 4000 lbs. max. product load.
• Motor Drive: 3/4 HP, 230/460/3, 60 cycle, TEFC right angle gear motor with brake.

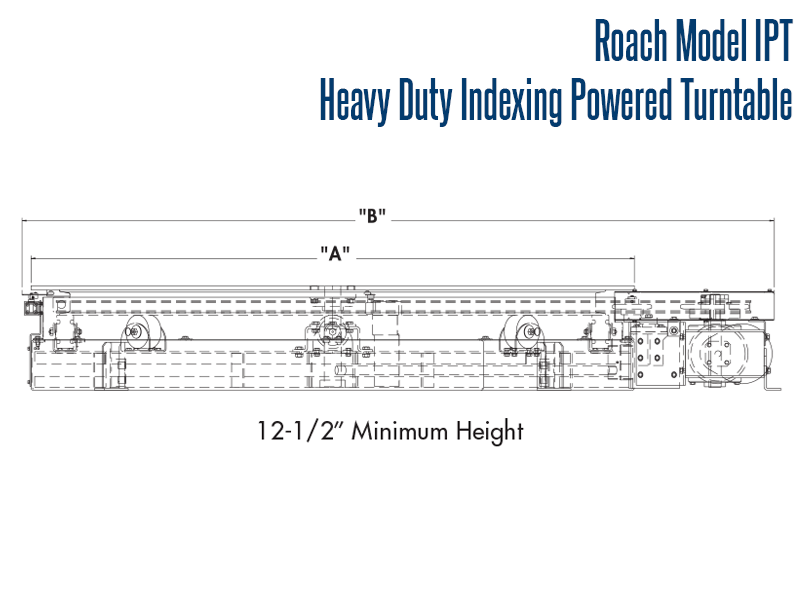

• Elevation: Minimum 12-1/2” to top of plate with (4) structural leveling supports.
• Electrical Controls: Limit switches supplied as follows: 2 position = 2 limit switches; 3 position = 3 limit switches; 4 position = 4 limit switches

Options

• Elevation: Other height elevations to top of plate available; consult factory.
• Motors: Available through 2 HP in TEFC, explosion proof, dirty duty, 115/230/1, 575/3, etc.
• Electrical Controls: Manual start/stop push button switch; magnetic starter; photo relay; others available

For more information on the Roach IPT Heavy Duty Indexing Powered Turntable, please contact a Thomas Conveyor & Equipment Automation Engineer at 844 220 0086 or click on the Contact Us button above.
