1/3-8” DIA. X 18 GA. Gravity Roller Conveyor (Roach Model 138A-138G)

1/3-8” Dia. X 18 GA. Gravity Roller Conveyor Roach Model 138A-138G conveys loads of wire bins, canisters, barrels, wooden boxes, drums, lumber, cartons, totes, & cardboard boxes and can obtain non-contact accumulation of product
PDF CATALOG

TYPE: Gravity Roller Conveyors

MODEL: RCH 138A-138G

1-3/8" Dia X 18 Ga Straight or Curved Gravity Roller Conveyors

Features

  • Non-powered roller conveyors or gravity conveyors are the most economical and common method of conveying unit loads
  • Typically mounted on a slight decline angle, therefore using gravity to assist product movement, especially for long distances



24 Hour Shipping Available

  • Can provide no-contact accumulation of product
  • Cost effective
  • Frame Capacity:
    • Aluminum 160 lbs maximum distributed live load per 10' section or 750 lbs per 5' section
    • Galvanized steel 350 lbs maximum distributed live load per 10' section, or 1300 lbs per 5' section.
  • Roller Capacity: 35-50 lbs.

Applications

  • Essential for packaging facilities, manufacturing plants, and distribution facilities, gravity roller conveyors allow quick transportation of bulk materials
  • Convey loads of wire bins, canisters, barrels, wooden boxes, drums, lumber, cartons, totes, & cardboard boxes
  • Use in applications where the conveyor is level and operators can push the product along to its final destination, allowing for multiple workstations, as necessary
  • Used on conveyor lines in warehouses, shipping areas, assembly areas and more

Specifications

  • Rollers: 1-3/8” dia. x 18 ga. tubing available in heat treated alum. (model 138A) or galv. steel (model 138G); both with smooth swaged ends.
  • Roller Capacity is 35 lbs. for 138A; 50 lbs. for 138G.
  • Axles: 1/4” dia. galvanized steel shaft, spring loaded.

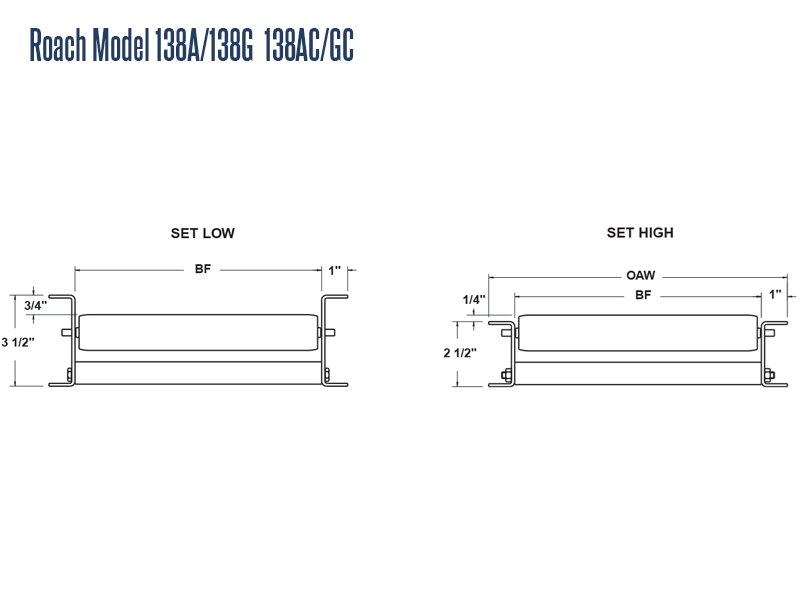

  • Frames: Formed heat treated aluminum channel 2-1/2” x 1” x 1/8”; formed galvanized steel channel 2-1/2” x 1” x 12 ga.
  • Couplings: Hook and rod; hooks on one end and rod (“stud”) other end.
  • Bearings: Integral plain ball bearings, zinc plated, oiled.
  • Frame Capacity:  Aluminum 160 lbs. max. distributed live load per 10’ section or 750 lbs. per 5’ section; galv. steel 350 lbs. max. distributed live load per 10’ section, or 1300 lbs. per 5’ section.

Options

  • Available in Aluminum or galvanized steel
