Roach Model 700PBC Flush Grid Plastic Belt Curve Conveyor

Features

• Flush grid belts are lighter than flat top belts, which make them more suitable for long, wide conveyor runs
• Friction is reduced due to less surface contacting products
• Flush grid belts can also be used for slight accumulation and lateral movement applications
• Can be used with applications requiring 30°, 45°, 60° or 90° curves
• S-curve formations are also available with a minimum center tangent length twice belt width
• Additional straight tangents may be added at the discharge or drive ends
• Lightweight operation
• Reduced sound operation
• Easy to assemble and reconfigure
• Variety of working surfaces and incline levels
• Highly flexible for efficient conveyance
• Lower cost of maintenance

Specifications

• Belt: Series 2200 flush grid gray curved polypropylene belt, FDA & USDA approved belting.
• Drive Sprockets: 5.3” pitch dia. with 1.5” square bore. Available with Optional 6.3” or 7.7” pitch dia. sprockets with 1.5” or 2.5” square bore.
• Tail Sprockets: 5.3” pitch dia. with 1.5” square bore. Available with Optional 6.3” or 7.7” pitch dia. sprockets with 1.5” or 2.5” square bore.
• End Drive: Allows one-direction operation ONLY; this conveyor is NOT reversible.
• BELT: Series 2200 flush grid gray curved polypropylene belt, FDA & USDA approved belting.
• Drive Sprockets: 5.3” pitch dia. with 1.5” square bore. Available with Optional 6.3” or 7.7” pitch dia. sprockets with 1.5” or 2.5” square bore.
• Tail Sprockets: 5.3” pitch dia. with 1.5” square bore. Available with Optional 6.3” or 7.7” pitch dia. sprockets with 1.5” or 2.5” square bore.
• End Drive: Allows one-direction operation ONLY; this conveyor is NOT reversible.
• Take Up: Catenary type located at discharge end.
• Bed: 7” x 1-1/2” x 10 ga. formed steel channel frame with UHMW wearstrips attached to bed and belt return pan.
• Minimum Radius: 2.2 x belt width, measured from inside edge of belt.
• Speed: 60 FPM, constant. TANGENTS: Minimum length is 1.5 x belt width located at each end of conv. Optional additional tangent may be located at dischg.
• Bearings: End shafts are supported by precision, heavy duty, lubricated, ball bearing units with cast iron housings.
• Direction of Flow: Specify right hand or left hand.

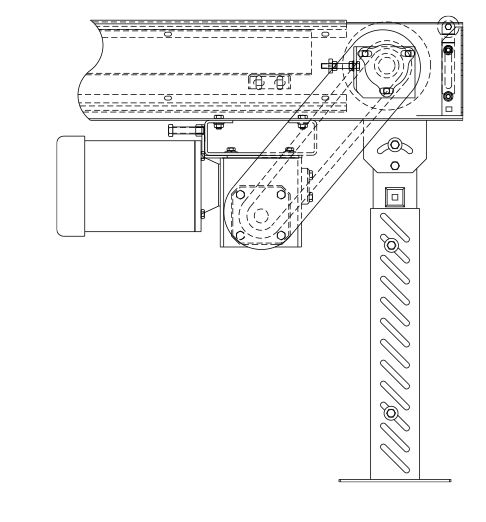

• Motor Drive: 1/3 HP, 230/460/3, 60 cycle, ODP right angle gear motor on 45° and 90° curves; 3/4 HP supplied on all 180° curves.
• Roller Chain: Drive shaft is driven by No. 50 chain.
• Electrical Controls: Optional

Options

• Unit is shown with an optional white belt

For more information on the Roach Model 700PBC please contact a Thomas Conveyor & Equipment Automation Engineer at 844 220 0086 or click on the Contact Us button above.
