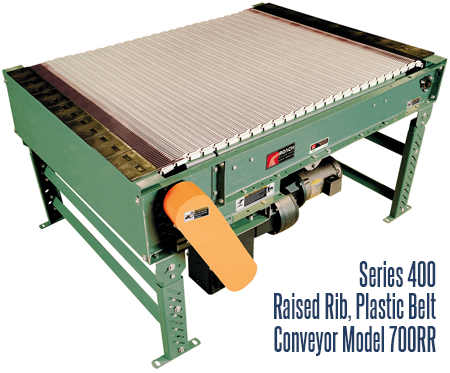

Series 400, Raised Rib Plastic Belt Conveyor, Roach Model 700RR

Features

• Lightweight operation
• Reduced sound operation
• Easy to assemble and reconfigure
• Highly flexible for efficient conveyance
• Lower cost of maintenance
• Variety of working surfaces and incline levels
• Belt tracking problems are eliminated

Applications

• Used where product stability transfers are a concern
• Ideal for buffer and sorting functions
• Products needing stable placement
• Transporting, transfer and accumulation of cans, bottles and other small items that are difficult to transfer

Specifications

• Belting: Series 400 raised rib gray polypropylene belt, FDA approved belt. Finger transfer plates provided both ends of conveyor to facilitate smooth product transfer.
• Drive Sprockets: 7.8” pitch dia. with 1.5” square bore. Available with Optional 10.1” pitch dia. sprockets with 1.5” or 2.5” square bore.
• Tail Sprockets: 7.8” pitch dia. with 1.5” square bore. Available with Optional 10.1” pitch dia. sprockets with 1.5” or 2.5” square bore.
• Bed: 7” x 1-1/2” x 10 ga. channel frame with open style bed construction and UHMW wearstrips mounted to longitudinal channels.
• End Drive: Allows one-direction (unit) operation.
• Bearings: Drive and tail shaft bearings are precision, heavy duty, lubricated, ball bearing units with cast iron housings.
• Belt Speed: 60 FPM, constant. TAKE-UP: Catenary type located at discharge end.
• Return Rollers: 1.9” dia. x 16 ga. steel, model 196S, adjustable with rubber sleeves.
• Motor Drive: 1/3 HP, 230/460/3, 60 cycle, ODP right angle gear motor.
• Roller Chain: Drive shaft is driven by No. 50 roller chain for 1-1/2 HP or less and No. 60 chain on larger drives. Chain take-up provided on motor base.
• Electrical Controls: Optional.

For more information on the Roach Model 700RR please contact a Thomas Conveyor & Equipment Automation Engineer at 844 220 0086 or click on the Contact Us button above.
