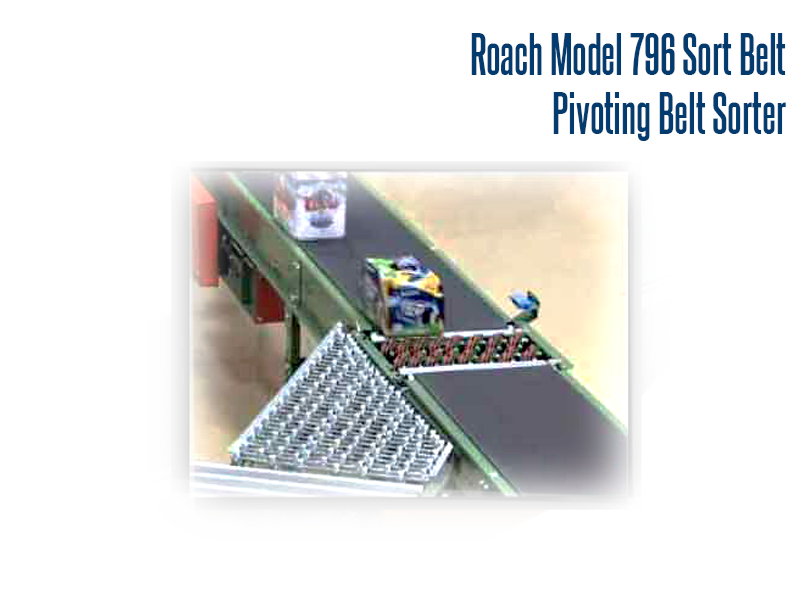

Roach Model 796 Sort Belt, Pivoting Belt Sorter

The Model 796 Sort Belt is a pivoting belt diverter that allows for a high level of package sortation.
PDF CATALOG

TYPE: Transfer and Merge Conveyors

MODEL: Roach Model 796 Sort Belt

The Model 796 Sort Belt is a pivoting belt diverter that allows for a high level of package sortation. It can sort up to 75 sorts per minute with belt speeds as high as 300 fpm.

Features:

  • Up to 75 Sorts per Minute
  • Belts speeds as high as 300 fpm.

Specifications:

  • Belting
    Trackmate
  • Drive Pulley
    8” dia. With 1-7/16” dia. Shaft, both machine crowned and fully lagged.
  • Tail Pulley
    4” dia., machine crowned, with 1-3/16” dia. shaft,
  • Safety Pop-Out Roller
    Standard on both ends, 1.9” dia. X 16 ga. Steel Roller, Model 196S.
  • Nose-Bar Pulley
    2-1/2” dia. machine crowned pulley
  • Take-Up
    Screw type unit at tail pulley provides 12” belt take-up
  • Belt Speed
    300 FPM, maximum (speeds are dependent up upon product size and weight)
  • Air Cylinder
    Dual, 1-1/16” bore x 1” stroke double action cylinders
  • Air Controls
    Single solenoid 40 PSI required
  • Diverter
    Dual pivoting wheels with urethane drive bands
  • Diverter Drive
    Diverter is slave driven from the conveyor belt
  • Diversion Angle
    30° and 45°.  Guard rails on take-away spur conveyor may be required.
  • Rate
    Up to 75 sorts per minute
  • Staging Diverter
    Stages package for diverting.

For more information on the Roach 796 Sort Belt, Pivoting Belt Sorter, please contact a Thomas Conveyor & Equipment Automation Engineer at 844 220 0086 or click on the Contact Us button above.
