Diebel D-3300 Extruded Aluminum Frame Conveyor

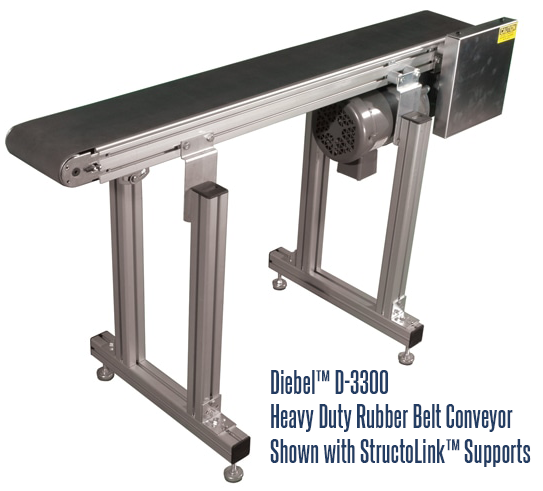

D-3300 Conveyor with StructoLink™ Support Legs for Diebel Aluminum Frame Rubber Belt Conveyors

TYPE: Rubber Belt Conveyors

MODEL: D-3300

The Diebel D-3300 Extruded Aluminum Frame Conveyor is a heavy-duty conveyor ideal for automation applications with loads up to 200 lbs.

The Diebel D-3300 extruded aluminum frame conveyor is a heavy-duty conveyor with a compact overall profile of 2.48”. This conveyor is available with a box beam frame (for 1” – 6” belt width), or plate and rail frame (for 8” – 18” belt width).

The D-3300 features a robust electric motor paired with a gearbox to provide long lasting power transmission. The extruded aluminum frame features a dual T-slot that runs the full length of the frame for mounting rails, electrical accessories, supports, sensors, photo eyes, or other accessories. All other parts are zinc coated to provide a clean, maintenance-free finish (options are available for stainless steel 304 2B parts).

The Diebel series features a simple and easy belt tracking system. The model D-3300 is available from 1’ length to 40’ length with an end drive or center drive. The maximum capacity of this conveyor is 200 lbs.  This model comes with a 2-1/4” drive and infeed pulley, but can also be configured with a tight transfer for those small parts that are difficult to convey.

The D-3300 is utilized for electronics processing, clean room applications, and food processing.

For more information on the Diebel D-3300 Extruded Aluminum Frame Conveyor, please contact a Thomas Conveyor & Equipment Automation Engineer at 800-220-0086, or click on the Contact Us button above.

Diebel Series Aluminum Frame Conveyors

Model Position Light Duty - D1300
Ultra Low Profile
Medium Duty -D2300
Low Profile
Heavy Duty - D3300
Low Profile
Diebel Model # D-1300 D-2300 D-2300 D-2300
(Tight Transfer)
D-3300 D-3300 D-3300
(Tight Transfer)
Drive Location End & Center End Center Center End Center Center
Lengths 1'- 20' 1'- 20" 18"- 40' 18"- 40' 1'- 20' 3' - 40' 3'- 40'
Infeed Pulley/Roller Diameter 1.125" 2.250" 2.250" 2 @ 1.125" 2.250" 2.250" 2 @ 1.125"
Drive Pulley/Roller Diameter 1.125" 2.250" 2.250" 2.250" 2.250" 2.250" 2.250"
Drive Shaft Diameter 0.625" 0.625" 0.625" 0.625" 0.750" 0.750" 0.750"
Frame Depth 1.125" 2.480" 2.480" 2.480" 2.480" 2.480" 2.480"
Maximum Capacity 40 Lbs. 80 Lbs. 80 Lbs. 80 Lbs. 200 Lbs. 200 Lbs. 200 Lbs.
# of T-Slots 1 2 2 2 2 2 2
Motor Type Gearmotor Gearmotor Gearmotor Gearmotor Motor & Reducer Motor & Reducer Motor & Reducer
Belt Widths/
Frame Style
2", 4", 6", 8"
12", 18"
BW's Plate & Rail Frame
Box Beam Frame 1", 2", 4", 6"
BWs
Box Beam Frame 1", 2", 4", 6"
BWs
Plate & Rail Frame 8", 12", 18"
BWs
Plate & Rail Frame 8", 12", 18"
BWs

For more information on the Diebel D-3300 Extruded Aluminum Frame Conveyorplease contact a Thomas Conveyor & Equipment automation engineer at 800 220 0086 or click on the Contact Us button above.
