LiftMat Low Profile Lift Table

TYPE: Lift Tables

MODEL: Floor Height Lift Table

Southworth’s LiftMat Low Profile Lift Tables allow product to be loaded by a hand truck.

With a collapsed height of 3.25", their extremely low profile provides four sided accessibility to any pallet or skid, even closed bottom pallets and skids.

LiftMat Lift Tables provide in-pit versatility at a floor mount price. An optional ramp allows the low profile lift to be fed with a hand pallet truck.

Features

Collapsed height as low as 3 inches

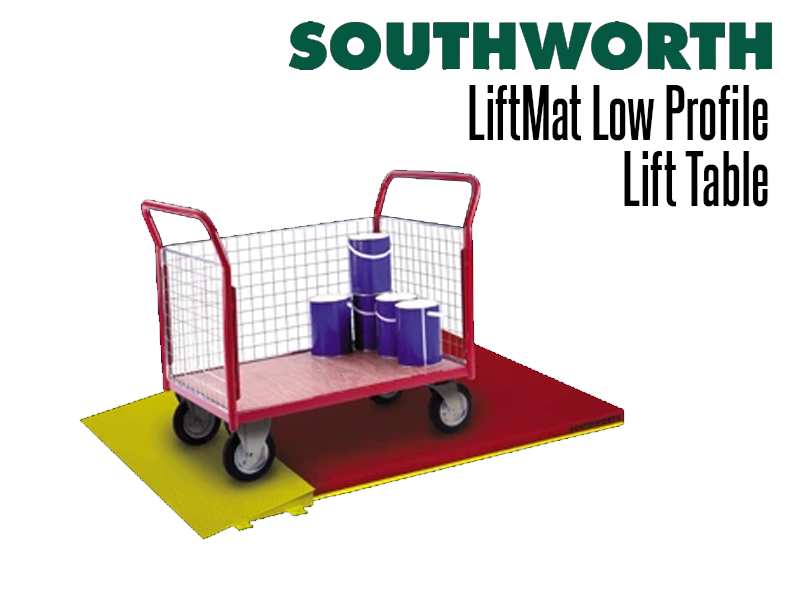

A unique low profile ramp allows them to be fed with a hand pallet truck
A full perimeter Toe Guard stops the descent of the lift table when it comes into contact with any obstruction
LiftMat Low Profile Lift tables are best suited to applications where the load is evenly distributed

Applications

Machine feeding
Work positioning
Assembly
Order picking
Pallet loading
Manufacturing
Warehouse
Applications commonly found in industrial settings

Options

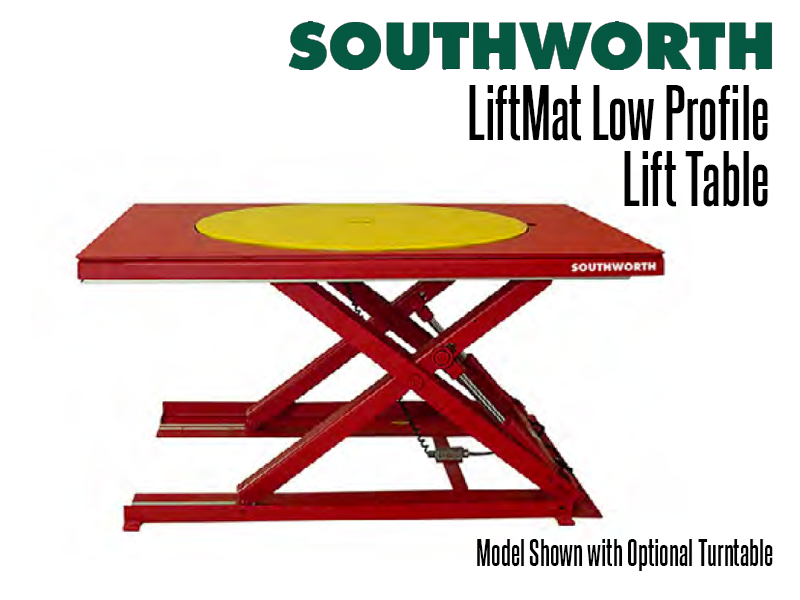

Integral Turntable Available
Optional Ramp allows the lift table to fed with a hand pallet truck
One Touch Auto Leveling

Specifications

Model Number	Load Capacity	Raised Height	Lowered Height	Std. Base & Platform	Maximum Platform	Motor HP	Voltage/ Phase/HZ	Shipping Weight
LM2.2-28	2200 lbs	31.5"	3.25"	24" x 60"	48" x 96"	1.0	115/1/60	600 lbs
LM2.2-28 w/Turntable	1950 lbs	32.375"	4.125"	48" x 66"	48" x 96"	1.0	115/1/60	750 lbs

For more information on the Southworth LiftMat Low Profile Lift Table, please contact a Thomas Conveyor & Equipment Ergonomic Automation Engineer at 844 220 0086 or click on the Contact Us button above.
