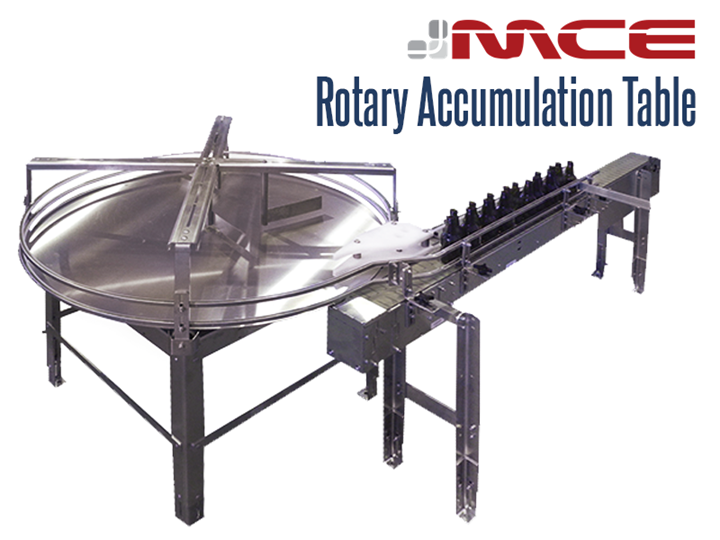

Rotary Accumulation Table

---

Features

• Often used with round containers, such as bottles, to accumulate or unscramble bulk, so that they can be discharged in a single file line.
• Designed to support a variety of conveyor system requirements
• Deck diameters range from 3’ to 8’
• Weight capacity is available up to 500 lbs.
• Clockwise and counter clockwise rotation available
• Adjustable speed control
• Rotation speeds can be constant or variable with 90° index capabilities
• Easy to clean / Wash down resistant
• Ideal for areas that are not large enought or not suitable for an automated system
• Well matched with hand packing stations or loading tables
• Low maintenance
• Complete pre-wired factory control packages are also available
• Turntables ship completely assembled for quick installation into new or existing applications
• Ships within 10-15 business days

Typical Applications

• Accumulating, orientation and sorting products
• Packaging
• Processing
• Assembly
• Food processing
• Manufacturing applications
• Unscrambling and single filing containers prior to filling, capping, and labeling applications

Specifications

• Rotary Table: Polished Stainless Steel Disc
• Support: ±4” Adjustment Height
• Guide Rail: Flips in Field to Make Either Right or Left Handed
• Motor: High Efficiency Washdown-Inverter Duty Gear Motor
• Load Capacity: 100 lbs Combined Weight

Options

• Rotary turntables are available in carbon steel and stainless steel construction
• Complete wash-down and food grade packages available

Benefits

Stainless steel conveyor systems are ideal for the food manufacturing sector, due to some of the following advantages:

• Hygienic Maintenance
  The food and beverage industry needs to maintain thorough hygienic conditions for all their processes. Stainless steel conveyors are capable of maintaining such hygiene. Their excellent resistance against corrosion, as well as over-heating, make them ideal for the displacement of items such as meats, produce, and grains.
• Expedient Food Transfers
  Another benefit of stainless steel conveyors is their tight transfer of food items at exact intervals. Timely delivery of often perishable food items is essential during food processing, as well as automated packaging.
• Transfer of Slippery Food Items
  For wet and slick food items, stainless steel conveyors can be mesh belted. This asissts in the displacement of food items without slippage.
• Cost Effectiveness
  Stainless steel conveyor systems are cost-effective and have a long functioning life. Belts and components are easily maintained and long lasting. Also, thanks to automated technologies, labor costs are reduced for the transfer of items across manufacturing facilities.

Transfer of Product Using Stainless Steel Systems

The versatile nature of stainless steel conveyor systems make them suitable for various food items, such as:

• Bakery Products
  Stainless steel conveyor systems provide optimal temperature conditions for bakery product displacement and offer solutions for automated filling, packaging, and labeling of baked food items.
• Meats and Seafood
  Poultry products and seafood require clean, hygienic conditions. Such conditions are facilitated by stainless steel conveyors while transferring these items for processing and packaging
• Dairy Products
  Packaging of difficult to handle dairy products like cheese, butter, milk, and curds is done efficiently using stainless steel conveyor systems.
• Miscellaneous
  Numerous other food items like spices, condiments, beverages, confectioneries, fruits, etc. are transported in food manufacturing using stainless steel conveyors.

For more information on Rotary Turntables please contact a Thomas Conveyor & Equipment Automation Engineer at 844 220 0086 or click on the Contact Us button above.
