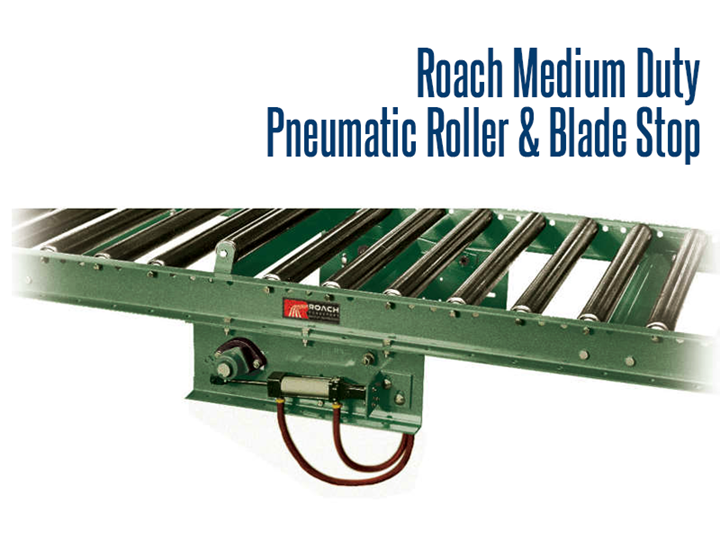

Medium Duty Pneumatic Roller and Blade Stop (for Gravity Conveyors)

TYPE: Conveyor Accessories

MODEL: Med Duty Pneumatic Roller and Blade Stops for Gravity Conveyor

Medium Duty Pneumatic Roller And Blade Stops (For Gravity Conveyors)

Pneumatic Roller and Blade Stops are designed to stop or reroute your conveying equipment’s path and are used to improve usability and customize your conveying setup.


  • Designed for 3-1/2” and 4” deep frames
  • Product Stops can prevent product and case damage by halting items on the line
  • Stops can be used in heavy duty applications such as unit load handling as well as light duty applications
  • Stops are often used in conjunction with conveyor components, such as transfers and pushers, to align products or coordinate processes
  • Designed for 3 1/2" and 4" frame depths.


  • Pneumatic gravity conveyor stops are used where automatic line control is required such as slug accumulation, indexing, etc.
  • Used on conveyor lines in packaging, manufacturing, distribution, warehouses, shipping areas, assembly areas, order fulfillment, automotive, food and beverage industries and more


  • Roller Stop: 1.9” dia. x 16 ga. steel 196S roller for medium duty; 2.5” dia. x 11 ga. steel 251S roller for heavy duty.
  • Blade Stop: 7 ga. formed angle.
  • Air Cylinder: Double action. (60-80 PSI required)
  • Bearings: Removable type, heavy duty ball bearing, with cast iron housings.
  • Solenoid Valve: Single.
  • Lock: Positive over center locking device to hold position.
  • Widths: 24 hour shipments include 13”, 15”, 17”, 19”, 21”, 23”, 25”, 27”, 31”, 33”, 37”, 39”, 43”, 45”, 47” and 51” BF.


  • Double solenoid/elec. controls
