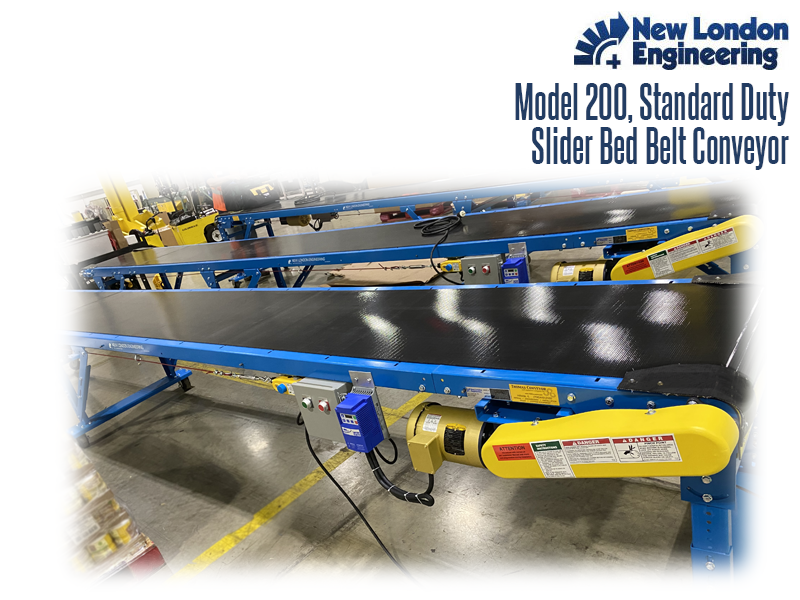

Standard Duty Slider Bed Belt Conveyor, NLE Model 200

The Model 200 Slider Bed Belt Conveyor is an economical alternative that boasts a shallow frame which allows for tight spaces.
PDF CATALOG

TYPE: Rubber Belt Conveyors

MODEL: NLE Model 200
SHIPPING: 24 HOUR SHIPMENT | 2 week shipment

The Model 200 Slider Bed Belt Conveyor is an economical alternative that boasts a shallow frame which allows for tight spaces.

The Model 200 Standard Duty, Roller Bed Belt Conveyor provides low maintenance operation for shorter and light duty production and packaging operations.



24 Hour Shipping Available

Standard Specifications

  • Widths: Up to 30"
  • Lengths: 5'– 40' (6" Increments)
  • Standard Length is 5', Two Piece Bolt Together
  • Standard Speed: 60 FPM
  • Standard Motor: 1/3 HP 230/460/3/60 TEFC
  • Standard Drive: Bottom Mount, Right Side

Standard Belt: Black PVC 120, Clipper Lacing

  • Drive Pulley: 4" Dia Crown Face Rubber Lagged x 1-3/16"
  • Infeed Pulley: 4" Dia Crown Face Take Up x 1-3/16"
  • Frame: 2-3/4" Deep x 12 Gauge
  • Standard Supports: 30" Elevation Top of Belt

Optional Features:

  • Belt Type: 2 Ply Black PVC (Standard), 2 Ply Black Rough Top, or Green Urethane
  • Variable Speeds Available from 1.5 to 120 FPM
  • PRE-WIRED: 115v Single Phase Speed Control with Cord Control to Motor and 10’-0” Cord and Plug Available
  • Casters for Conveyor Portability
  • Control Kits for Emergency E Stops and Cords

For more information on the Model 200 Standard Duty, Slider Bed Belt Conveyor please contact a Thomas Conveyor & Equipment Automation Engineer at 844 220 0086 or click on the Contact Us button above.
