Wexxar BEL 151 Semi-Automatic Bottom Tape Case Sealer

The BEL 151 is a semi-automatic, pressure sensitive, bottom only tape case sealer. It is a versatile and compact machine that can seal a wide range of case sizes. When combined with a BEL case former, it allows one operator to form, pack and seal corrugated cases in a single operation. BEL 150 Pressure Sensitive, Semi-
PDF CATALOG

TYPE: Tape Case Sealers

Contact an Application Engineer
MODEL: Wexxar BEL 151

The WExxar BEL 151 is a semi-automatic, pressure sensitive, bottom ONLY tape case sealer available at Thomas Conveyor & Equipment Co.  This versatile model is compact and can seal a wide range of case sizes. When combined with a BEL case former, it allows one operator to form, pack and seal corrugated cases in a single operation.

Eco Friendly Application

Features

  • Uniform, pressure sensitive, semi-automatic case taper

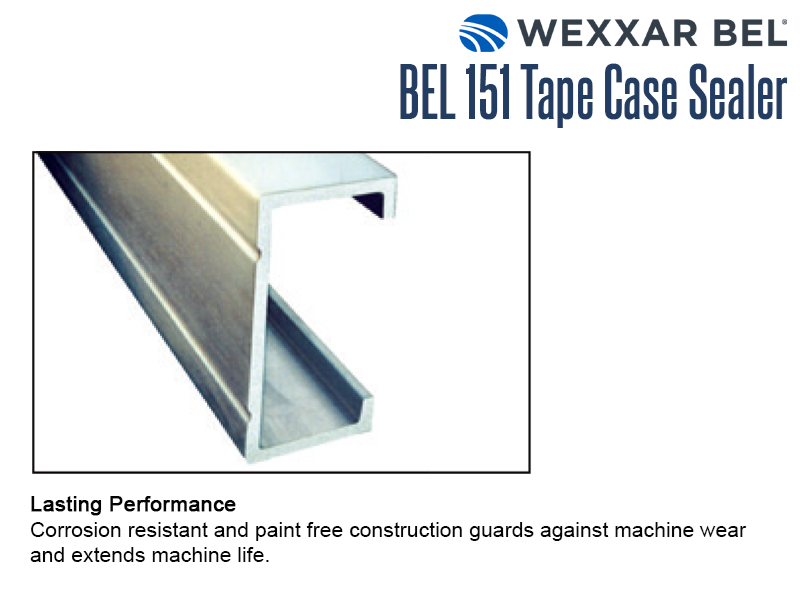

  • Heavy duty corrosion resistant aluminum C-beam construction provides additional durability and machine life
  • Uni-Drive case transport system eliminates case skew and ensures that cases are squarely taped
  • Can seal a wide range of case sizes at speeds of up to 30 cases per minute
  • Features quick change case sizing
  • Reliable, consistent “no break” tape advance with DEKKA 22 high performance stainless steel 2” tape heads
  • Tape application minimizes stress on the edges of the tape and prevents snapping
  • Its compact sizing allows for applications with limited floor space
  • Centralized, color coded set up guides make case changeovers quick and easy
  • Quick and easy maintenance
  • Designed and built in North America with premium materials

Applications

  • Automotive / Hardware
  • Bakery
  • Beverage
  • Confectionery/Snacks
  • Dairy
  • Furniture / Household Goods / Electronics
  • Meat / Seafood
  • Retail Ready
  • Personal Care / Cosmetics
  • Pharmaceutical / Medical
  • Produce / Agriculture
  • Textiles/Apparel

Specifications

  • Speed: up to 30 cases per minute (CPM)
  • Corrosion resistant and paint free frame construction
  • Machine Weight: 400 lbs
  • Machine Dimensions: Machine Dimensions : 37.5 x 33 x 39"
  • Electrical: 120 Volts, 1 PH, 60 Hz - 8 amp draw
  • Case Size Minimum :  8 x 5 x 4"
  • Case Size Maximum : Unlimited x 18" x Unlimited
  • Infeed/Outfeed Height Minimum : 23.5"
  • Infeed/Outfeed Height Maximum : 32"

Options

  • Modifications for undersized or oversized cases
  • Gap Flap or other case style modifications
  • Custom voltages
  • 3” Tape head upgrade
  • Locking casters
  • Infeed/Outfeed Table or Conveyor
  • Accumulation Table
  • Spare Parts Kit
  • Enviroguard, stainless steel water-resistant/corrosion free options available washdown safe icon

For more information on the Wexxar BEL 151 Semi-Automatic Bottom-Only Tape Case Sealer, please contact a Thomas Conveyor & Equipment Automation Engineer or give us a call at 844 220 0086.

QUESTIONS? CALL 844-220-0086
