Delta Vertical Reciprocating Conveyor Material Lift

The Delta VRC offers the lower price of a hydraulic VRC while integrating the advantages of a mechanical lift.

TYPE: Mechanical Lifts - Vertical Reciprocating Conveyors VRCs

MODEL: Delta VRC Material Lift

The Delta VRC offers the lower price of a hydraulic VRC while integrating the advantages of a mechanical lift.

Wildeck’s Delta™ Vertical Reciprocating Conveyor (VRC) is a safe and reliable way to transfer your material from level to level.

The Delta™ VRC is transported in large sections for installation and installs in less than 8 hours providing you with minimal disruption to your operation!

The unit's unique design produces a VRC that is not only sturdy and reliable, but offers low maintenance.

Delta™ VRC Benefits:

  • Ingenious Design
  • Easy Installation
  • Low Maintenance
  • Highly Durable and Reliable
  • High Value and Low Cost, a Great Logistics Investment

Specifications:

Lift Capacity:

  • 2,200 lbs.

Lift Speed:

  • 15 fpm (standard), other speeds available

Carriage Platform:

  • 5' W x 6" L x 7" H

Loading Patterns:

  • “Z” loading, Standard "C" loading available

Paint Finish:

  • Standard VRC paint color is Wildeck Gray.
  • Optional colors available.
  • Purchased components are painted per vendor standards.
  • Factory painted materials use an electrostatically applied industrial 2-part polyurethane coating.

Operations & Controls

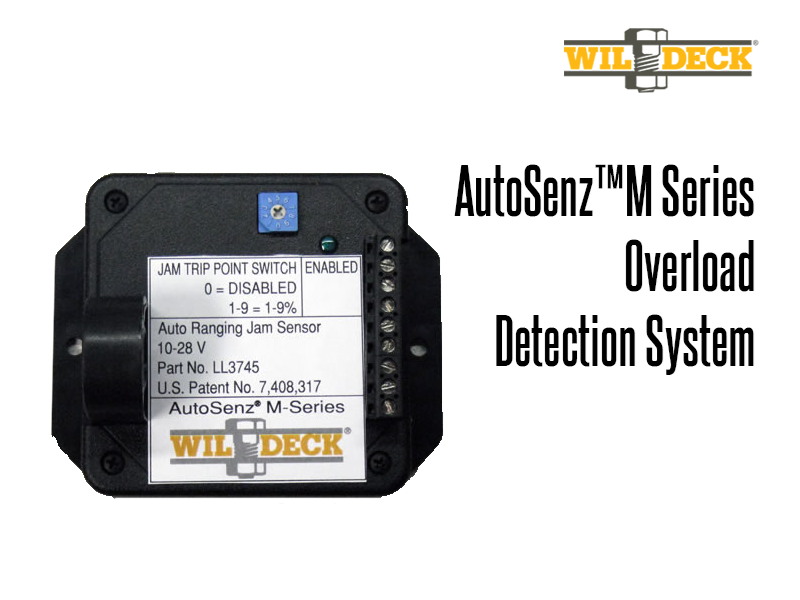

  • Includes patented AutoSenz® M-Series Overload/VRC jam protection
    Mechanical SmartControl™ not available for Delta™ VRCs

Safety

  • Gates: Single Swing Gate (standard), other gates available
  • Integrated, full height perimeter guarding
  • Fully-enclosed carriage with galvanized tread plate floor and walls
  • Expanded metal roof

Carriage Safety Options:

Wildeck VRC's have a standard carriage freefall device. Optional safety carriage locking devices are available to prevent the accidental descent of a raised carriage. When the VRC arrives at an upper level stop, the system locks the carriage enclosure either through automatic (SafeLock™) or manual (DeckStop™) means.

  • SafeLock™: Automatic; failsafe, the carriage locks automatically when arriving at the
    designated level.
  • DeckStop™: Manual; simple, and reliable. Locking arms provide a highly visible barrier at the loading area.

Additional Safety Options Include:

  • CargoLok™ Carriage Gate— Encloses and secures large rolling loads
  • ArmorCar™ Carriage — A fully-enclosed VRC carriage for additional freight safeguarding
    Heavy Duty Landing Level Gates – Used for heavy duty applications or applications prone to impact during load
