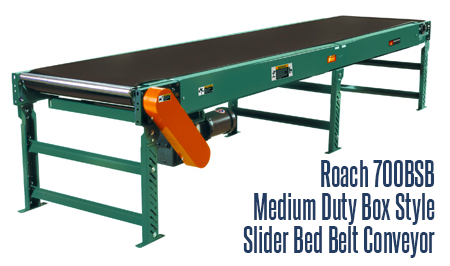

Medium Duty Box Style Slider Bed Belt Conveyor, Roach Model 700BSB

Features

• Model 700BSB features a box style slider bed which offers a smooth work surface, ideal for workers stationed beside this conveyor
• Box style slider bed belt conveyors are an inexpensive and simple method of moving products from one point to another
• Because of the simplicity of the flat, moving belt, they can be used to move a variety of product sizes, shapes and weights effectively for long lengths with a single drive
• The box style provides safety and efficiency as the parts move through the manufacturing process from workstation to workstation

Applications

• Excellent choice for tasks such as packing, assembly, testing and inspecting.

Specifications

• Belting: PVC-120 black
• Drive Pulley: 4” dia. with 1-3/16” dia. shaft or 8” dia. with 1-7/16” dia. shaft, both machine crowned and fully lagged.
• Tail Pulley: 4” dia., machine crowned, with 1-3/16” dia. shaft.
• End Drive: Allows one-direction (unit) operation; add optional center drive for reversible application
• Safety Pop-Out Roller: Standard on both ends, 1.9” dia. x 16 ga. steel roller, model 196S.
• Take Up: Screw type unit at tail pulley provides 12” belt take-up.
• Bed: 7” deep x 12 ga. box type construction.
• Bearings: All pulley bearings are precision, heavy duty, lubricated, ball bearing units with cast iron housings.
• Return Rollers: 1.9” dia. x 16 ga. steel, model 196S, adjustable
• Motor Drive: 1/3 HP, 230/460/3, 60 cycle, ODP right angle gear motor
• Roller Chain: Drive pulley is driven by No. 50 roller chain for 1-1/2 HP or less and No. 60 chain on larger drives. Chain take-up provided on motor base.
• Belt Speed: 60 FPM, constant
• Electrical Controls: Optional

Options

• Belting: Black PVC ruff-top; 3-ply brown neoprene ruff-top; PVC-120 white food grade COS; PVC-150 black COS; 3-ply CN 40 urethane cover.
• Center Drive: Reversible drive with integral belt take-up of 24”. Specify location. Center drive option available on units 6’-0” long and above.
• Side Mounted End Drive: Provides minimum conveyor height of 10” TOB (4” dia. drive pulley); 12” TOB (8” dia. drive pulley).
• Overhead End Drive: Provides minimum conveyor height of 8” TOB (4” dia. drive pulley); 10” TOB (8” dia. drive pulley).
• Auxiliary Take-Up: Provides 24” of belt take-up. Specify location.
• Nose-over: Provides smooth transition from incline to horizontal position. Single nose-over adjusts 0-20°; double nose-over adjusts 0-35°. Feeders also available.
• Undertrussed Bed: Available to provide clearance underneath unit at bed joint locations. Specify location for undertrussing and desired clearance underneath unit.
• Side Tables: Available in 9”, 15” and 21” widths (14 ga.) one or both sides.
• Floor supports: Supports, knee braces, casters and polytier supports available.
• Ceiling Hangers: 5/8” dia. threaded rod with hardware to attach rods to conveyor. Proovides 6’ clearance between ceiling and TOB (furnished in place of floor supports).
• Guard Rails: 1-3/4” x 1” formed channel (model GC), adjusts horizontally to 10” wider than belt and vertically to 6” above belt; formed steel fixed (model FSG in 2”, 4”, 6”, 8”, 12”, and 18” heights; fixed channel (model FC); 1-1/2” angle (model GA1-1/2).
• Belt Speed: Constant speed 10-120 FPM; DC variable speed; AC inverter variable speed. Other constant or variable speeds available. NOTE: Capacity changes with speed.
• Motors: Available through 3 HP in TEFC, explosion proof, dirty duty, brake motor, 115/230/1, 575/3, etc.
• Electrical Controls: Magnetic starter (one direction or reversible); One direction manual starter; Momentary start/stop push button station; Forward/ reversing /stop push button station. Mounting and pre-wiring for units up to 12’ long.

Model 700BSB
24 Hour Ship Available
Belt Width	Bed Width
6"	9"
12"	15"
18"	21"
24"	27"
30"	33"
36"	39"

For more information on the Medium Duty Box Style Slider Bed Belt Conveyor Model 700BSB, please contact a Thomas Conveyor & Equipment automation engineer at 844 220 0086 or click on the Contact Us button above.
