Medium Duty Slider Bed Belt Conveyor, Roach Model 700SB

Roach 700SB Medium duty slider bed belt conveyor moves product smoothly, is economical and multi-functioning
PDF CATALOG
INSTALLATION & MAINTENANCE

TYPE: Belt Conveyors - 24 Hour Ship

MODEL: ROACH 700SB

The Model 700SB is a slider bed belt conveyor commonly used for sortation, packaging, general transportation, custom engineering processes, and manufacturing applications.

Features

  • Due to the simplicity of the flat, moving belt, slider bed belt conveyors can be used to move a variety of product sizes, shapes, and weights effectively for long lengths with a single drive.
  • The features of the slider bed belt conveyor remain the most popular of all powered conveyors, providing an economical means of transporting goods for packing, testing, inspecting and various assembly line operations.



24 Hour Shipping Available

  • Belt conveyors are also a great option to move products through elevations:
    Incline belt from low to high
    Decline belt from high to low

Specifications

  • Belting: PVC-120 black
  • Drive Pulley: 4” dia. with 1-3/16” dia. shaft or 8” dia. with 1-7/16” dia. shaft, both machine crowned and fully lagged.
  • Tail Pulley: 4” dia., machine crowned, with 1-3/16” dia. shaft
  • End Drive: Allows one-direction (unit) operation; add optional center drive for reversible application
  • Take Up: Screw type unit at tail pulley provides 12” belt take-up
  • Safety Pop Out Roller: Standard on both ends, 1.9” dia. x 16 ga. steel roller, model 196S.
  • Bearings: All pulley bearings are precision, heavy duty, lubricated, ball bearing units with cast iron housings
  • Bed: 7” x 1-1/2” x 12 ga. channel frame with 14 ga. slider bed.
  • Belt Speed: 60 FPM, constant.
  • Motor Drive: 1/3 HP, 230/460/3, 60 cycle, ODP right angle gear motor.
  • Roller Chain: Drive pulley is driven by No. 50 roller chain for 1-1/2 HP or less and No. 60 chain on larger drives. Chain take-up provided on motor base.
  • Return Rollers: 1.9” dia. x 16 ga. steel, model 196S, adjustable
  • Electrical Controls: Optional

Options

  • Belting: Black PVC ruff-top; 3-ply brown neoprene ruff-top; PVC-120 white food grade COS; PVC-150 black COS; 3-ply CN 40 urethane cover.
  • Center Drive: Reversible drive with integral belt take-up of 24”. Specify location. Center drive option available on units 6’-0” long and above.
  • Side Mounted End Drive: Provides minimum conveyor height of 10” TOB (4” dia. drive pulley); 12” TOB (8” dia. drive pulley)
  • Overhead End Drive: Provides minimum conveyor height of 8” TOB (4” dia. drive pulley); 10” TOB (8” dia. drive pulley)
  • Nose Over: Provides smooth transition from incline to horizontal position. Single nose-over adjusts 0-20°; double nose-over adjusts 0-35°. Feeders also available.
  • Auxiliary Take Up: Provides 24” of belt take-up. Specify location.
  • Side Tables: Available in 9”, 15” and 21” widths (14 ga.) one or both sides.
  • Undertrussed Bed: Available to provide clearance underneath unit at bed joint locations. Specify location for undertrussing and desired clearance underneath unit.
  • Ceiling Hangers: 5/8” dia. threaded rod with hardware to attach rods to conveyor. Provides 6’ clearance between ceiling and TOB (furnished in place of floor supports).
  • Belt Speed: Constant speed 10-120 FPM; DC variable speed; AC inverter variable speed. Other constant or variable speeds available. NOTE: Capacity changes with speed.
  • Floor Supports: Supports, knee braces, casters and polytier supports available.
  • Guard Rails: 1-3/4” x 1” formed channel (model GC), adjusts horizontally to 10” wider than belt and vertically to 6” above belt; formed steel fixed (model FSG in 2”, 4”, 6”, 8”, 12”, and 18” heights; fixed channel (model FC); 1-1/2” angle (model GA1-1/2).
  • Motors: Available through 3 HP in TEFC, explosion proof, dirty duty, brake motor, 115/230/1, 575/3, etc.
  • Electrical Controls: Magnetic starter (one direction or reversible); One direction manual starter; Momentary start/stop push button station; Forward/ reversing /stop push button station. Mounting and pre-wiring for units up to 12’ long.

For more information on the Model 700SB Slider Bed Belt Conveyor, please contact a Thomas Conveyor & Equipment Automation Engineer at 844 220 0086 or click on the Contact Us button above.

Model 700SB
24 Hour Ship Available

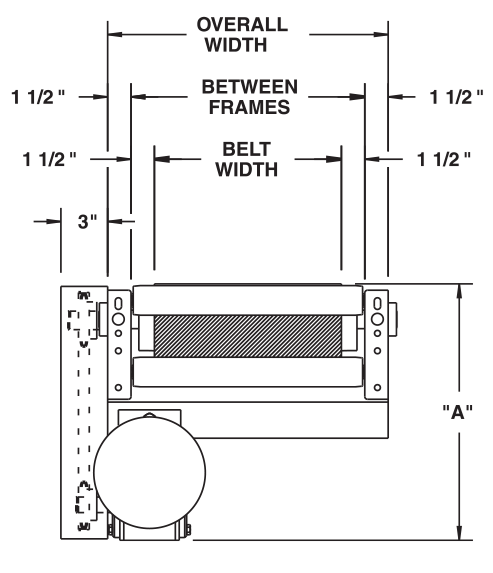

Belt Width Bed Width
6" 9"
12" 15"
18" 21"
24" 27"
30" 33"
36" 39"
