Wexxar BEL 180 Semi-Automatic Random Case Taper

The BEL 180 Semi-Automatic, top and bottom case tape sealer provides adaptive case sealing for uniform or random sizes at speeds of up to 20 cases per minute.
PDF CATALOG

TYPE: Tape Case Sealers

MODEL: Wexxar BEL 180 Case Sealer

The BEL 180 automatically adjusts for cases of varying height and width when they are presented to the sealer. It has height and width adjusting mechanisms with locking safety movements in the case of sudden air loss. Cases are taped top and bottom at speeds of up to 20 cases per minute.

Eco Friendly Application


Features

  • The BEL 180 can be set to random or semi-automatic depending on the changing demands of your packaging line.
  • One Button Setup: With the press of a button, the BEL 180 is ready to go from uniform to random case sealing
  • Uniform case sealing; Adjusts for random case sizes during operation and can adjust to particular case size and lock in position to quickly seal a run of uniform size cases

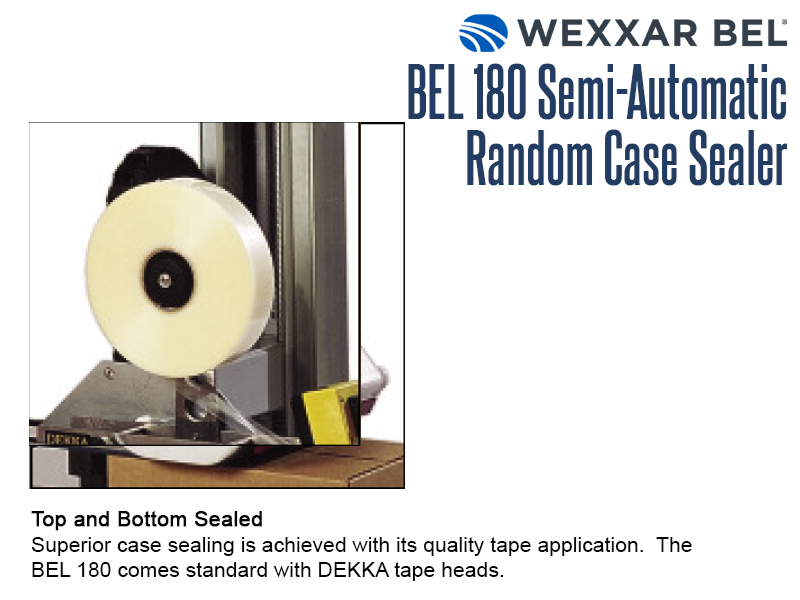

  • Cases are taped top and bottom with either 2" or 3" wide tape using DEKKA stainless steel tape heads
  • Reliable, consistent “no break” tape advance
  • Easy tape roll changes; The tape head tilts outwards for quick changes. The tilt-out feature is exclusive to DEKKA tape heads.
  • Advanced safety features prevent accidental restarts and guards between the operator and moving parts
  • Type 304 Stainless-steel machine frame, electrical enclosure, arch, and case transport rollers
  • Dual HP side belt drive gear motors
  • Conveyor belt and assembly parts are mounted on top and easily accessible, making changes and adjustments simple
  • Can seal a wide range of case sizes at speeds of up to 20 cases per minute
  • Power Save Mode
  • Designed and built in North America with premium materials

Safety Provisions

  • Top drive lifts if hands contact front sensor plate
  • Height and width adjusting cylinders have air pressure sensing and spring activated rod locks
  • Magnetic motor starter switch to prevent accidental restarts after a power interruption
  • Potential hazards are warned with labels to ANSI Z535 standards
  • Front and rear guard doors

Applications

  • Automotive / Hardware
  • Bakery
  • Beverage
  • Confectionery/Snacks
  • Dairy
  • Furniture / Household Goods / Electronics
  • Meat / Seafood
  • Retail Ready
  • Personal Care / Cosmetics
  • Pharmaceutical / Medical
  • Produce / Agriculture
  • Textiles/Apparel

Specifications

  • Speed: up to 30 cases in uniform mode, 20 cases per minute in random mode (CPM)
  • Corrosion resistant and paint free frame construction
  • Machine Weight: 500 lbs

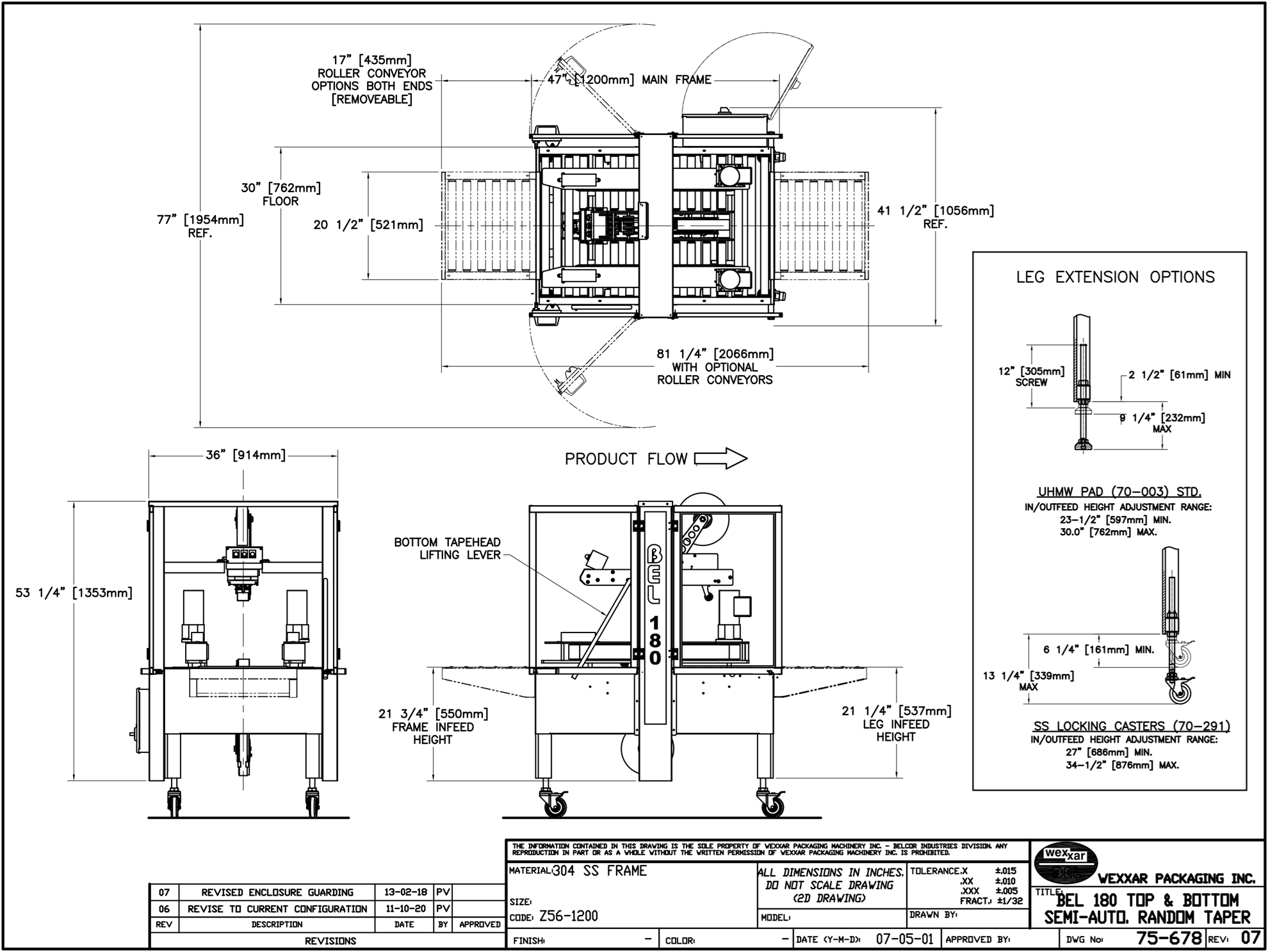

  • Machine Dimensions: 46”(L) x 36”(W) x 54”(H)
  • Electrical: 120 Volts, 1 PH, 60 Hz - 5 amp draw
  • Case Size Minimum : 6" x 6" x 6"
  • Case Size Maximum : 72" 17" x 19"
  • Infeed/Outfeed Height Minimum : 23.5"
  • Infeed/Outfeed Height Maximum : 30"

Options

  • 3” DEKKA Stainless Steel Tape head upgrade
  • Locking casters
  • Accumulation Table
  • Water Resistant, Washdown Stainless Steel Construction Upgrade(180SS)
  • Printwiz Tape Printer

For more information on the Wexxar BEL 180 Semi-Automatic Tape Case Sealerplease contact a Thomas Conveyor & Equipment Automation Engineer at 844 220 0086 or click on the Contact Us button above.

QUESTIONS? CALL 844-220-0086
