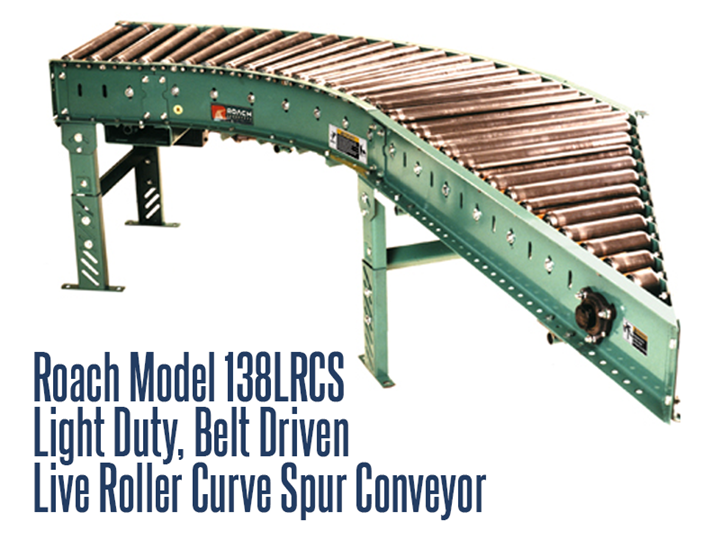

Light Duty Belt Driven Live Roller Curve Spur Conveyor, Roach Model 138LRCS

Light Duty Belt Driven Live Roller Curve Spur Roach Model 138LRCS can be used for product diversions or converging, to spur conveyor lines or for merging loads of cartons, totes, fixtures, and cardboard boxes.

TYPE: Belt Driven Live Roller Conveyors


Curved belt driven live roller conveyor used for diverting to spur lines; best used with light duty applications.

A belt driven live roller conveyor or BDLR is a gravity roller conveyor powered by a belt. The friction created by the belt drive produces a low pressure method of accumulating product, which in turn allows for loads to be stopped or stalled on the conveyor surface while the belt continues to run.


  • Gravity Roller spurs transfer products from one conveying line to another
  • They are ideally used where numerous lines must transfer onto a main conveyor line, from work stations or other similar operations
  • Ideal for light duty applications


  • Used in diverging or converging applications
  • Merging loads of cartons, totes, fixtures and cardboard boxes
  • Manufacturing
  • Order Fulfillment
  • Warehousing & Distribution
  • Aerospace
  • Government
  • Military & Agency
  • Automotive
  • Parcel Handling


  • Tread Rollers: 1.9” dia. to 1-3/8” dia. x 16 ga. tapered rollers, model 138T; 1-3/8” dia. x 18 ga., model 138G w/ 5/16” hex, galvanized straight tangent rollers.
  • Roller Centers: 1-9/16” measured at inside radius of unit.
  • Pressure Sheaves: Provides drive belt pressure to upper tread rollers.
  • Belt: “B” section V-belt.
  • Take Up: Screw type adjustable sheave with flat idler sheaves provided to maintain belt tension.
  • Tangents: 12” opposite spur end on 60°/30° unit; 18” opposite spur end on 45°/45° unit.
  • Speed: 60 FPM, constant. BEARINGS: End shafts are supported by precision, heavy duty, lubricated, ball bearing units with cast iron housings.
  • Bed: 6” x 1-1/2” x 12 ga. formed steel channel frame.
  • Roller Chain: Drive shaft is driven by No. 50 chain.
  • Motor Drive: 1/3 HP, 230/460/3, 60 cycle, ODP right angle gear motor, located under tangent straight section bed.
  • Spur/Hand Drive Location: Drive located on outside of curve. Specify hand of spur as “left hand” or “right hand” and location of drive specified as “left hand drive” or “right hand drive”. Drive location determined with reference point located at outside of curve (see “determining drive location” on pg. 22). For models slave driven (less drive), specify drive shaft location.
  • Capacity: 300 lb. total distributed live load.


  • Special Widths: Consult factory for pricing of ALL widths not shown.
  • Guard Rails: See Conveyor Accessories for various type guard rails available.
  • Floor supports: See Conveyor Accessories for various elevation and types.
  • Tangents: Lengths other than listed available. Combined total length must not exceed 3’-0”.
  • Belt Speed: Constant speed 10-120 FPM; AC & DC variable speed. Other constant or variable speeds available. NOTE: Capacity changes with speed.
  • Motors: Available through 2 HP in TEFC, ex. proof, dirty duty, brake motor, 115/230/1, 575/3, etc.
  • Electrical Controls: Magnetic & manual starters; push buttons, etc.

For more information on the Model 138LRCS Light Duty Belt Driven Live Roller Curve Spur,  please contact a Thomas Conveyor & Equipment Automation Engineer at 844 220 0086 or click on the Contact Us button above.
