Light Duty Belt Driven Live Roller Curve Conveyor, Roach Model 138LRC

Roach has created a line of diverters, diverting conveyors, and dividing conveyors to move round or odd-shaped products from a single lane to multiple lanes.  Diverting conveyors include a pattern forming machine to sort products from one lane to multiple lanes.

Features

• Tapered rollers to maintain product orientation while moving round or odd-shaped products from a single lane to multiple lanes
• Reversible
• Commonly slave driven from 138LR and 138VP making it the ideal curve for light duty applications

Applications

• Can be used for product diversion on a spur line or for merging loads of cartons, totes, fixtures, and cardboard boxes
• Moves round or odd-shaped products from a single lane to multiple lanes

Specifications

• Tread Rollers: 1.9” dia. to 1-3/8” dia. x 16 ga. tapered rollers, model 138T; 1-3/8” dia. x 18 ga., model 138G w/ 5/16” hex, galvanized straight tangent rollers.

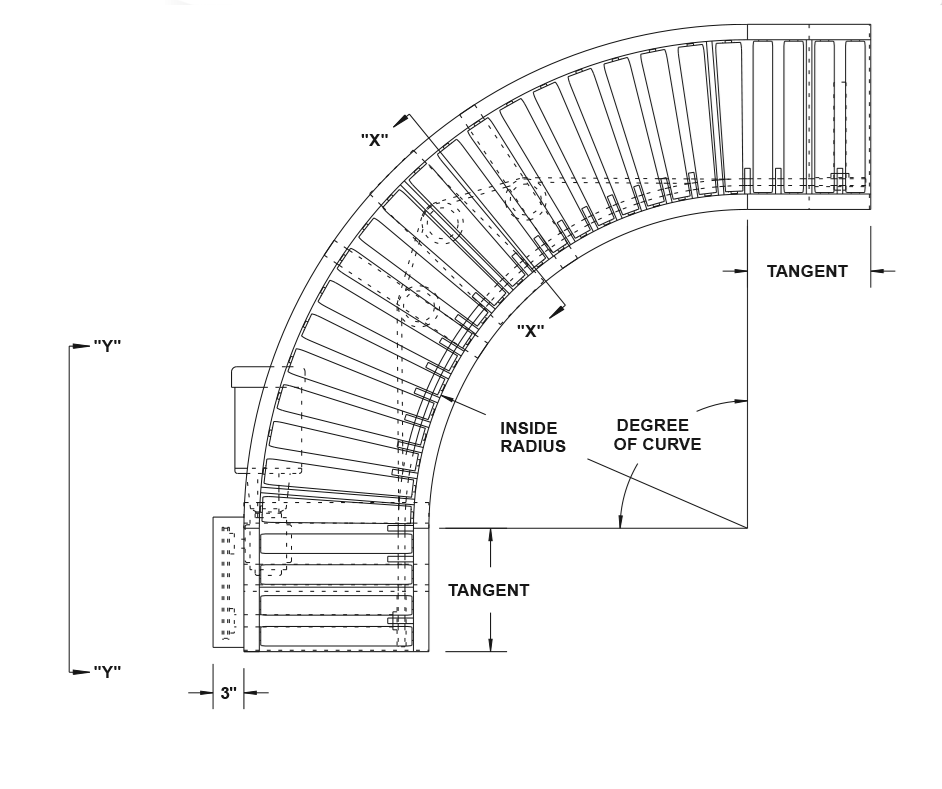

• Roller Centers: 1-9/16” measured at inside radius of unit.
• Pressure Sheaves: Provides drive belt pressure to upper tread rollers.
• Belt: “B” section V-belt.
• Take Up: Screw type adjustable sheave with flat idler sheaves to maintain belt tension.
• Tangents: 12” both ends on 90° unit; 18” both ends on 45° unit.
• Bed: 6” x 1-1/2” x 12 ga. formed steel channel frame.
• Speed: 60 FPM, constant.
• Bearings: End shafts are supported by precision, heavy duty, lubricated, ball bearing units with cast iron housings.
• Roller chain: Drive shaft is driven by No. 50 chain.
• Motor Drive: 1/3 HP, 230/460/3, 60 cycle, ODP right angle gear motor, located at infeed end of curve below bed.
• Drive location: Drive located on outside of curve. Specify left hand tangent length, right hand tangent length and drive location (“left hand drive” or “right hand drive”).
  NOTE: Drive hand determined with reference point located at outside of curve. For models slave driven (less drive), specify drive shaft location. See “determining drive location” on page 22.
• Capacity: 300 lb. total distributed live load.

Options

• Special Widths: Consult factory for pricing of ALL widths not shown.
• Guard Rails: See Conveyor Accessories for various type guard rails available.
• Floor Supports: See Conveyor Accessories for various elevation and types.
• Tangents: Lengths other than listed available. Combined total length must not exceed 6’-0”.
• Belt Speed: Constant speed 10-120 FPM; AC & DC variable speed. Other constant or variable speeds available. NOTE: Capacity changes with speed.
• Motors: Available through 2 HP in TEFC, ex. proof, dirty duty, brake motor, 115/230/1, 575/3, etc.
• Electrical Controls: Magnetic & manual starters; push buttons, etc.

For more information on the Roach Model 138LRC please contact a Thomas Conveyor & Equipment Automation Engineer at 844 220 0086 or click on the Contact Us button above.
